The graphical user interface for an Android app is built using a hierarchy of View and ViewGroup objects. View objects are usually UI widgets such as buttons or text fields and ViewGroup objects are invisible view containers that define how the child views are laid out, such as in a grid or a vertical list.

Android provides an XML vocabulary that corresponds to the subclasses of View and ViewGroup so you can define your UI in XML using a hierarchy of UI elements.

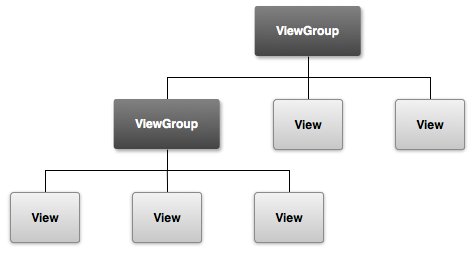

Figure 1. Illustration of how ViewGroup objects form branches in the layout and contain other View objects.

In this lesson, you'll create a layout in XML that includes a text field and a button. In the following lesson, you'll respond when the button is pressed by sending the content of the text field to another activity.

(This tutorial is based on http://developer.android.com/training/basics/firstapp/building-ui.html  )

1) Run ADT and open My First App project

Refer http://android-steps.blogspot.com/2014/12/103-adt18-create-android-project.html

2) Check the Class MainActivity.java

Notice the reference to the layout file.

package com.example.myfirstapp; import android.os.Bundle; import android.app.Activity; import android.view.Menu; public class MainActivity extends Activity {     @Override     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);     }     @Override     public boolean onCreateOptionsMenu(Menu menu) {         // Inflate the menu; this adds items to the action bar if it is present.         getMenuInflater().inflate(R.menu.main, menu);         return true;     }     }

3) Activity_Main file

Replace the startup codes with the following

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"     xmlns:tools="http://schemas.android.com/tools"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:orientation="horizontal"     tools:context=".MainActivity" >     <TextView         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:text="@string/hello_world" /> </LinearLayout>

4) Edit string values

Edit the strings.xml file

<?xml version="1.0" encoding="utf-8"?> <resources>     <string name="app_name">My First App</string>     <string name="action_settings">Settings</string>     <string name="hello_world">Hello world!</string>     <string name="edit_message">Enter a message</string>     <string name="button_send">Send</string>     <string name="title_activity_main">MainActivity</string>     <string name="menu_settings">Settings</string> </resources>

5)  Update the TextView Object with new variable name

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"     xmlns:tools="http://schemas.android.com/tools"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:orientation="horizontal"     tools:context=".MainActivity" >     <TextView         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:text="@string/edit_message" /> </LinearLayout>

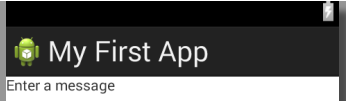

Outcome:

6) Add a Button to the layout

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"     xmlns:tools="http://schemas.android.com/tools"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:orientation="horizontal"     tools:context=".MainActivity" >     <TextView         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:text="@string/edit_message" />     <Button         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:text="@string/button_send" /> </LinearLayout>

7)  Change TextView to EditText.

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"     xmlns:tools="http://schemas.android.com/tools"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:orientation="horizontal"     tools:context=".MainActivity" >     <EditText         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:hint="@string/edit_message" />     <Button         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:text="@string/button_send" /> </LinearLayout>

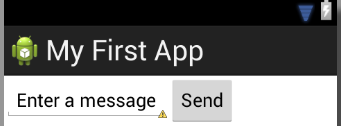

Outcome.

8) Change the weight and width property of EditText object.

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"     xmlns:tools="http://schemas.android.com/tools"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:orientation="horizontal"     tools:context=".MainActivity" >     <EditText          android:layout_weight="1"         android:layout_width="0dp"         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:hint="@string/edit_message" />     <Button         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:text="@string/button_send" /> </LinearLayout>

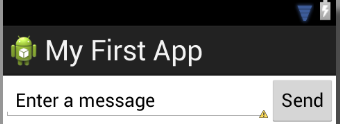

Outcome.

---
