Friday, October 30, 2015

Floating Action Button Opens Specific Fragment Page

How To Get Floating Action Button Opens Specific Fragment Page

1) Follow the tutorial http://android-steps.blogspot.my/2015/10/how-to-implement-view-pager-and-tab.html to create a sample project.

2) Edit Main Controller

File Name: MainActivity.java

package com.notarazi.myviewpagertablayout1;

import android.os.Bundle;

import android.support.design.widget.FloatingActionButton;

import android.support.design.widget.TabLayout;

import android.support.v4.view.ViewPager;

import android.support.v7.app.AppCompatActivity;

import android.support.v7.widget.Toolbar;

import android.view.Menu;

import android.view.MenuItem;

import android.view.View;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

// Get the ViewPager and set it's PagerAdapter so that it can display items

ViewPager viewPager = (ViewPager) findViewById(R.id.viewpager);

viewPager.setAdapter(new MainFragmentPagerAdapter(getSupportFragmentManager(),

MainActivity.this));

// Give the TabLayout the ViewPager

TabLayout tabLayout = (TabLayout) findViewById(R.id.sliding_tabs);

tabLayout.setupWithViewPager(viewPager);

//FloatingActionButton

FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);

fab.setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View view) {

//Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)

// .setAction("Action", null).show();

ViewPager viewPager = (ViewPager) findViewById(R.id.viewpager);

viewPager.setCurrentItem(1, true);

}

});

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

// Inflate the menu; this adds items to the action bar if it is present.

getMenuInflater().inflate(R.menu.menu_main, menu);

return true;

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

// Handle action bar item clicks here. The action bar will

// automatically handle clicks on the Home/Up button, so long

// as you specify a parent activity in AndroidManifest.xml.

int id = item.getItemId();

//noinspection SimplifiableIfStatement

if (id == R.id.action_settings) {

return true;

}

return super.onOptionsItemSelected(item);

}

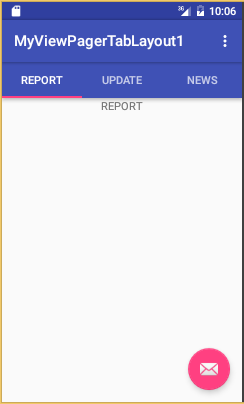

View Pager Displays Specific Fragment Page

How To Get View Pager Displays Specific Fragment Page

1) Follow the tutorial http://android-steps.blogspot.my/2015/10/how-to-implement-view-pager-and-tab.html to create a sample project.

2) Edit Main Controller

File Name: MainActivity.java

package com.notarazi.myviewpagertablayout1;

import android.os.Bundle;

import android.support.design.widget.FloatingActionButton;

import android.support.design.widget.TabLayout;

import android.support.v4.view.ViewPager;

import android.support.v7.app.AppCompatActivity;

import android.support.v7.widget.Toolbar;

import android.view.Menu;

import android.view.MenuItem;

import android.view.View;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

// Get the ViewPager and set it's PagerAdapter so that it can display items

ViewPager viewPager = (ViewPager) findViewById(R.id.viewpager);

viewPager.setAdapter(new MainFragmentPagerAdapter(getSupportFragmentManager(),

MainActivity.this));

// Give the TabLayout the ViewPager

TabLayout tabLayout = (TabLayout) findViewById(R.id.sliding_tabs);

tabLayout.setupWithViewPager(viewPager);

// tab index ={0,1,2}

// display tab index 1

viewPager.setCurrentItem(1,false);

//FloatingActionButton

FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);

fab.setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View view) {

//Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)

// .setAction("Action", null).show();

}

});

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

// Inflate the menu; this adds items to the action bar if it is present.

getMenuInflater().inflate(R.menu.menu_main, menu);

return true;

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

// Handle action bar item clicks here. The action bar will

// automatically handle clicks on the Home/Up button, so long

// as you specify a parent activity in AndroidManifest.xml.

int id = item.getItemId();

//noinspection SimplifiableIfStatement

if (id == R.id.action_settings) {

return true;

}

return super.onOptionsItemSelected(item);

}

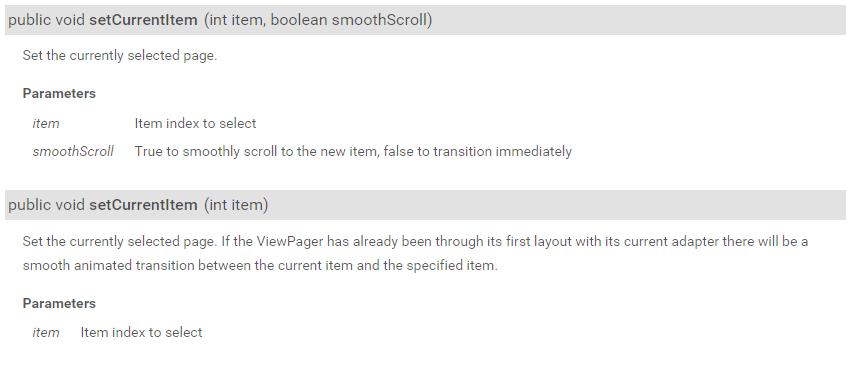

The Android Developer Page explains …

READ FURTHER: https://github.com/codepath/android_guides/wiki/ViewPager-with-FragmentPagerAdapter#launching-an-activity-with-tab-selected

Thursday, October 29, 2015

How To Implement View Pager and Tab Layout

This tutorial is based on https://github.com/codepath/android_guides/wiki/Google-Play-Style-Tabs-using-TabLayout and it was implemented on Android Studio version 1.4.

This tutorial, however, is slightly different from the above reference as it implements three fragment pages instead of a single fragment page.

1) In Android Studio, create a New Blank Activity Project.

2) Edit your build.grade (Module:app) file so that it contains the dependencies.

e.g.

File Name: build.gradle (Module:app)

dependencies {

compile fileTree(dir: 'libs', include: ['*.jar'])

testCompile 'junit:junit:4.12'

compile 'com.android.support:appcompat-v7:23.1.0'

compile 'com.android.support:design:23.1.0'

}

3) Add View Pager and Tab Layout to the Layout File

Blank Activity Project generates a nested layout i.e activity_main.xml containing content_main.xml.

We will edit content_main.xml to implement View Pager and Tab Layout.

File Name: content_main.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

xmlns:app="http://schemas.android.com/apk/res-auto"

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_behavior="@string/appbar_scrolling_view_behavior"

tools:showIn="@layout/activity_main"

tools:context=".MainActivity"

android:orientation="vertical">

<android.support.design.widget.TabLayout

android:id="@+id/sliding_tabs"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:background="?attr/colorPrimary"

android:elevation="6dp"

android:minHeight="?attr/actionBarSize"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"/>

<android.support.v4.view.ViewPager

android:id="@+id/viewpager"

android:layout_width="match_parent"

android:layout_height="fill_parent"

android:layout_below="@id/sliding_tabs"/>

</LinearLayout>

4) Define the Page Fragments Layout

For this tutorial, we will create three fragment pages.

File name: res/layout/fragment_page1.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical">

<TextView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:gravity="center_horizontal"

android:text="REPORT" />

</LinearLayout>

File name: res/layout/fragment_page2.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical">

<TextView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:gravity="center_horizontal"

android:text="UPDATE" />

</LinearLayout>

File name: res/layout/fragment_page3.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical">

<TextView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:gravity="center_horizontal"

android:text="NEWS" />

</LinearLayout>

5) Create Page Controller.

The role of Page Controller is to inflate ie to read page structure definition from XML file and insert the structure into the application.

File Name: FragmentPage1.java

package com.notarazi.myviewpagertablayout1;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class FragmentPage1 extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_page1, null);

}

File Name: FragmentPage2.java

package com.notarazi.myviewpagertablayout1;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class FragmentPage2 extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_page2, null);

}

File Name: FragmentPage3.java

package com.notarazi.myviewpagertablayout1;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class FragmentPage3 extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_page3, null);

}

6) Create Controller to handle the Fragment Page Controllers

package com.notarazi.myviewpagertablayout1;

import android.content.Context;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.support.v4.app.FragmentManager;

import android.support.v4.app.FragmentPagerAdapter;

public class MainFragmentPagerAdapter extends FragmentPagerAdapter {

final int PAGE_COUNT = 3;

private String tabTitles[] = new String[] { "REPORT", "UPDATE", "NEWS" };

private Context context;

public MainFragmentPagerAdapter(FragmentManager fm, Context context) {

super(fm);

this.context = context;

}

@Override

public int getCount() {

return PAGE_COUNT;

}

@Override

public Fragment getItem(int arg0) {

Bundle data = new Bundle();

switch(arg0){

/** tab1 is selected */

case 0:

FragmentPage1 fragmentpage1 = new FragmentPage1();

return fragmentpage1;

/** tab2 is selected */

case 1:

FragmentPage2 fragmentpage2 = new FragmentPage2();

return fragmentpage2;

/** tab3 is selected */

case 2:

FragmentPage3 fragmentpage3 = new FragmentPage3();

return fragmentpage3;

}

return null;

}

@Override

public CharSequence getPageTitle(int position) {

// Generate title based on item position

return tabTitles[position];

}

7) Update Main Controller

File Name: MainActivity.java

package com.notarazi.myviewpagertablayout1;

import android.os.Bundle;

import android.support.design.widget.FloatingActionButton;

import android.support.design.widget.Snackbar;

import android.support.design.widget.TabLayout;

import android.support.v4.view.ViewPager;

import android.support.v7.app.AppCompatActivity;

import android.support.v7.widget.Toolbar;

import android.view.Menu;

import android.view.MenuItem;

import android.view.View;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

// Get the ViewPager and set it's PagerAdapter so that it can display items

ViewPager viewPager = (ViewPager) findViewById(R.id.viewpager);

viewPager.setAdapter(new MainFragmentPagerAdapter(getSupportFragmentManager(),

MainActivity.this));

// Give the TabLayout the ViewPager

TabLayout tabLayout = (TabLayout) findViewById(R.id.sliding_tabs);

tabLayout.setupWithViewPager(viewPager);

//FloatingActionButton

FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);

fab.setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View view) {

Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)

.setAction("Action", null).show();

}

});

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

// Inflate the menu; this adds items to the action bar if it is present.

getMenuInflater().inflate(R.menu.menu_main, menu);

return true;

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

// Handle action bar item clicks here. The action bar will

// automatically handle clicks on the Home/Up button, so long

// as you specify a parent activity in AndroidManifest.xml.

int id = item.getItemId();

//noinspection SimplifiableIfStatement

if (id == R.id.action_settings) {

return true;

}

return super.onOptionsItemSelected(item);

}

8) Run.

(Running in Emulator)

DOWNLOAD: MyViewPagerTabLayout1.zip
