106-Android Studio 1.5 Tabbed Activity Template


.
106-Android Studio 1.5 Tabbed Activity Template

Continue from Tutorial 105

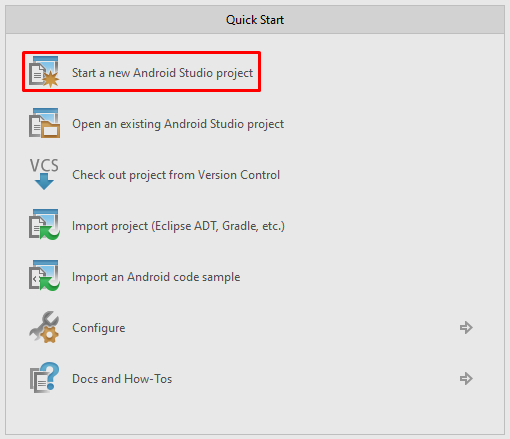

1) Create New Project

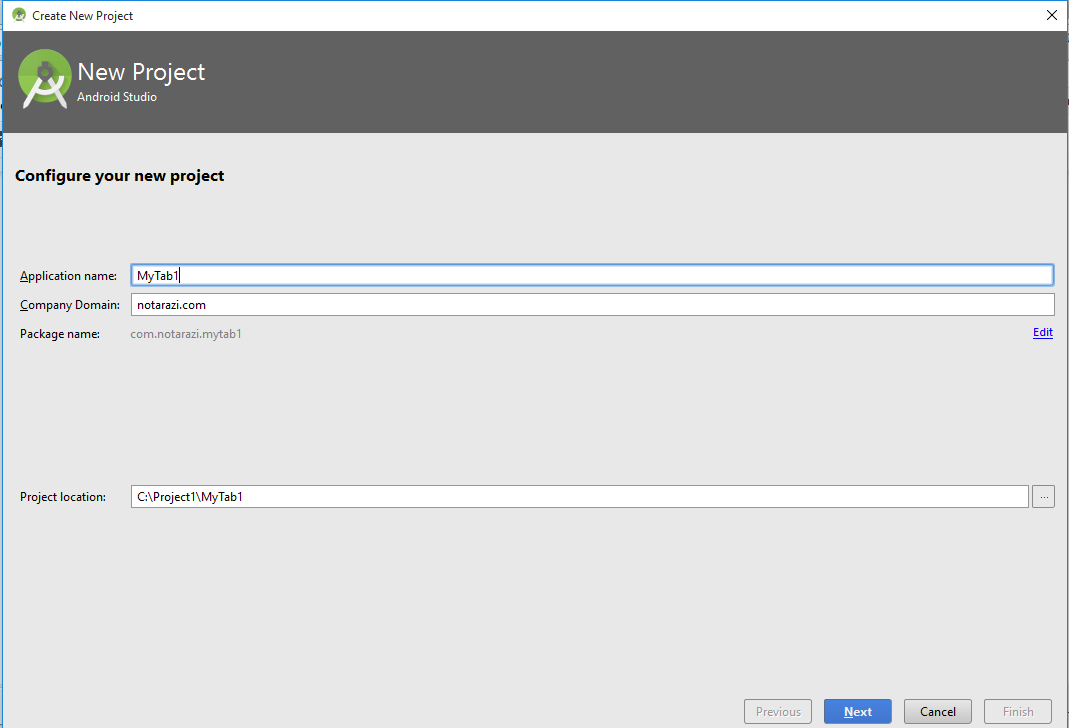

1.1) Configure New Project

Application Name: MyTab1
Company Domain: notarazi.com
Package Name: com.notarazi.mytab1 (auto-generated)
Project Location: C:\Project1\MyTab1\ (auto-generated)

1.2) Select Target Device

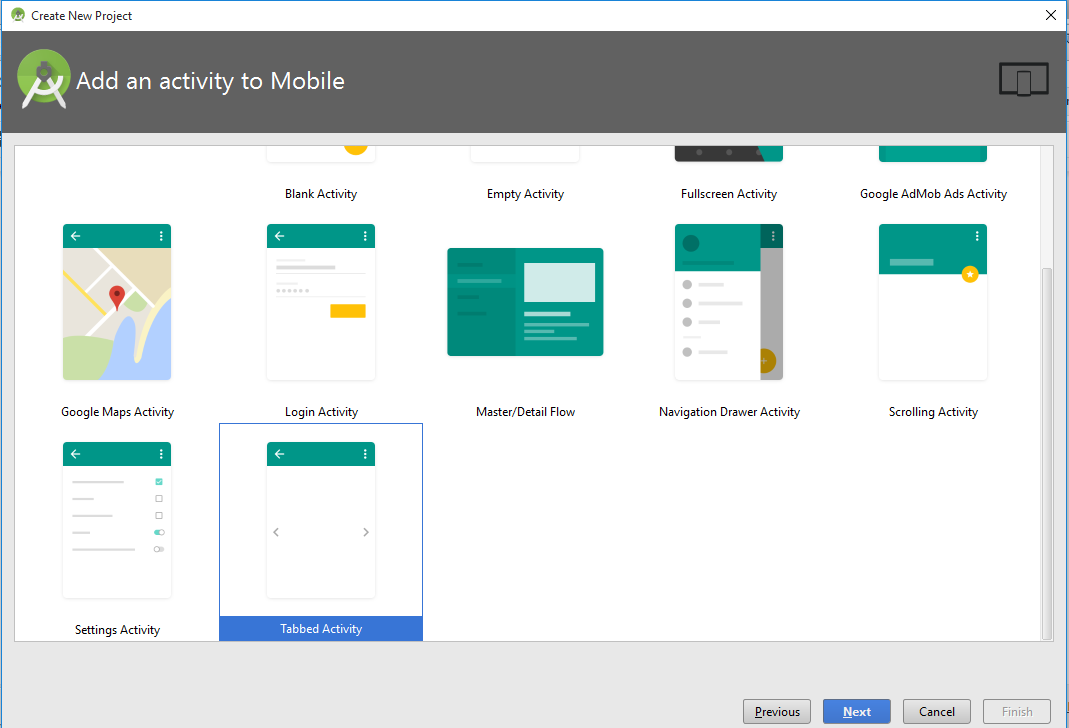

1.3) Add Activity

Select Tabbed Activity.

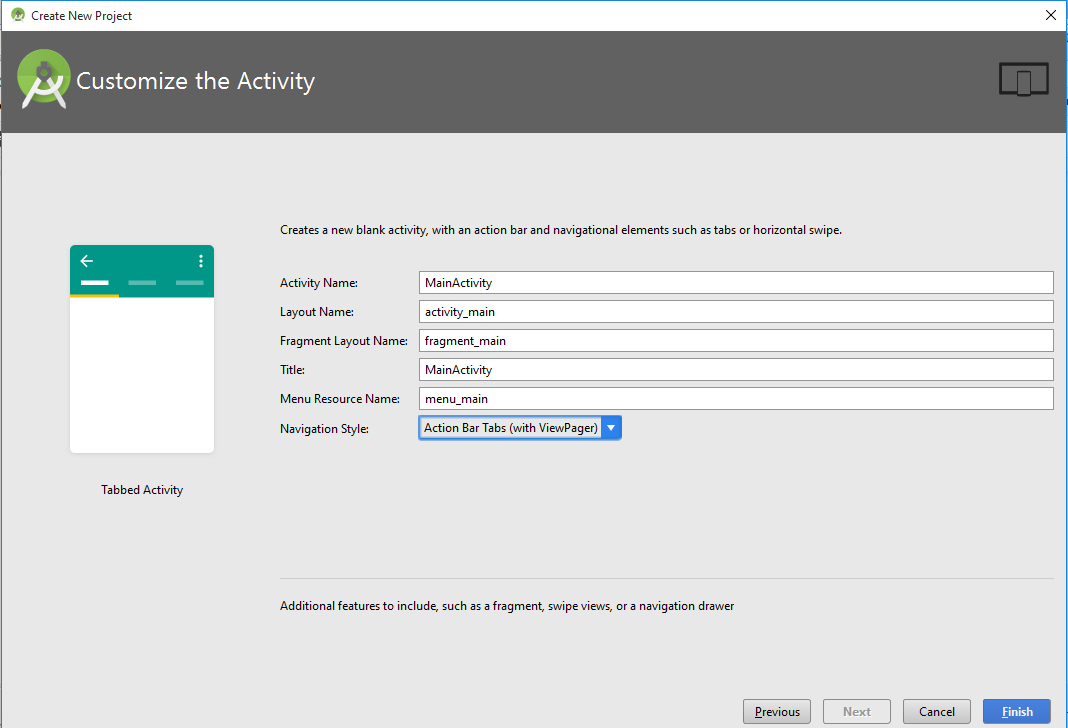

1.4) Customize The Activity

Select Navigation Style as “Action Bar Tabs (with ViewPager)

2) Observe the project codes

2.1) MainActivity.java

package com.notarazi.mytab1;
import android.support.design.widget.TabLayout;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;
import android.support.v4.view.ViewPager;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
public class MainActivity extends AppCompatActivity {
   /**
    * The {@link android.support.v4.view.PagerAdapter} that will provide
    * fragments for each of the sections. We use a
    * {@link FragmentPagerAdapter} derivative, which will keep every
    * loaded fragment in memory. If this becomes too memory intensive, it
    * may be best to switch to a
    * {@link android.support.v4.app.FragmentStatePagerAdapter}.
    */
   private SectionsPagerAdapter mSectionsPagerAdapter;
   /**
    * The {@link ViewPager} that will host the section contents.
    */
   private ViewPager mViewPager;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);
       Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
       setSupportActionBar(toolbar);
       // Create the adapter that will return a fragment for each of the three
       // primary sections of the activity.
       mSectionsPagerAdapter new SectionsPagerAdapter(getSupportFragmentManager());
       // Set up the ViewPager with the sections adapter.
       mViewPager = (ViewPager) findViewById(R.id.container);
       mViewPager.setAdapter(mSectionsPagerAdapter);
       TabLayout tabLayout = (TabLayout) findViewById(R.id.tabs);
       tabLayout.setupWithViewPager(mViewPager);
       FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
       fab.setOnClickListener(new View.OnClickListener() {
           @Override
           public void onClick(View view) {
               Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
                       .setAction("Action"null).show();
           }
       });
   }
   @Override
   public boolean onCreateOptionsMenu(Menu menu) {
       // Inflate the menu; this adds items to the action bar if it is present.
       getMenuInflater().inflate(R.menu.menu_main, menu);
       return true;
   }
   @Override
   public boolean onOptionsItemSelected(MenuItem item) {
       // Handle action bar item clicks here. The action bar will
       // automatically handle clicks on the Home/Up button, so long
       // as you specify a parent activity in AndroidManifest.xml.
       int id = item.getItemId();
       //noinspection SimplifiableIfStatement
       if (id == R.id.action_settings) {
           return true;
       }
       return super.onOptionsItemSelected(item);
   }
   /**
    * A placeholder fragment containing a simple view.
    */
   public static class PlaceholderFragment extends Fragment {
       /**
        * The fragment argument representing the section number for this
        * fragment.
        */
       private static final String ARG_SECTION_NUMBER "section_number";
       public PlaceholderFragment() {
       }
       /**
        * Returns a new instance of this fragment for the given section
        * number.
        */
       public static PlaceholderFragment newInstance(int sectionNumber) {
           PlaceholderFragment fragment = new PlaceholderFragment();
           Bundle args = new Bundle();
           args.putInt(ARG_SECTION_NUMBER, sectionNumber);
           fragment.setArguments(args);
           return fragment;
       }
       @Override
       public View onCreateView(LayoutInflater inflater, ViewGroup container,
                                Bundle savedInstanceState) {
           View rootView = inflater.inflate(R.layout.fragment_main, container, false);
           TextView textView = (TextView) rootView.findViewById(R.id.section_label);
           textView.setText(getString(R.string.section_format, getArguments().getInt(ARG_SECTION_NUMBER)));
           return rootView;
       }
   }
   /**
    * A {@link FragmentPagerAdapter} that returns a fragment corresponding to
    * one of the sections/tabs/pages.
    */
   public class SectionsPagerAdapter extends FragmentPagerAdapter {
       public SectionsPagerAdapter(FragmentManager fm) {
           super(fm);
       }
       @Override
       public Fragment getItem(int position) {
           // getItem is called to instantiate the fragment for the given page.
           // Return a PlaceholderFragment (defined as a static inner class below).
           return PlaceholderFragment.newInstance(position + 1);
       }
       @Override
       public int getCount() {
           // Show 3 total pages.
           return 3;
       }
       @Override
       public CharSequence getPageTitle(int position) {
           switch (position) {
               case 0:
                   return "SECTION 1";
               case 1:
                   return "SECTION 2";
               case 2:
                   return "SECTION 3";
           }
           return null;
       }
   }
}

2.2) Layouts

2.2.1) res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayoutxmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto"
   xmlns:tools="http://schemas.android.com/tools"
   android:id="@+id/main_content"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:fitsSystemWindows="true"
   tools:context="com.notarazi.mytab1.MainActivity">
   <android.support.design.widget.AppBarLayout
       android:id="@+id/appbar"
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:paddingTop="@dimen/appbar_padding_top"
       android:theme="@style/AppTheme.AppBarOverlay">
       <android.support.v7.widget.Toolbar
           android:id="@+id/toolbar"
           android:layout_width="match_parent"
           android:layout_height="?attr/actionBarSize"
           android:background="?attr/colorPrimary"
           app:layout_scrollFlags="scroll|enterAlways"
           app:popupTheme="@style/AppTheme.PopupOverlay">
       </android.support.v7.widget.Toolbar>
       <android.support.design.widget.TabLayout
           android:id="@+id/tabs"
           android:layout_width="match_parent"
           android:layout_height="wrap_content" />
   </android.support.design.widget.AppBarLayout>
   <android.support.v4.view.ViewPager
       android:id="@+id/container"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       app:layout_behavior="@string/appbar_scrolling_view_behavior" />
   <android.support.design.widget.FloatingActionButton
       android:id="@+id/fab"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:layout_gravity="end|bottom"
       android:layout_margin="@dimen/fab_margin"
       android:src="@android:drawable/ic_dialog_email" />
</android.support.design.widget.CoordinatorLayout>

2.2.2) res/layout/fragment_main.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:paddingBottom="@dimen/activity_vertical_margin"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   tools:context="com.notarazi.mytab1.MainActivity$PlaceholderFragment">
   <TextView
       android:id="@+id/section_label"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content" />
</RelativeLayout>

DOWNLOAD


.
