102 My Neighbors Apps Intro Screen


.
102 My Neighbors Apps Intro Screen

0) Starting Up

Continue from the previous tutorial or download startup files.

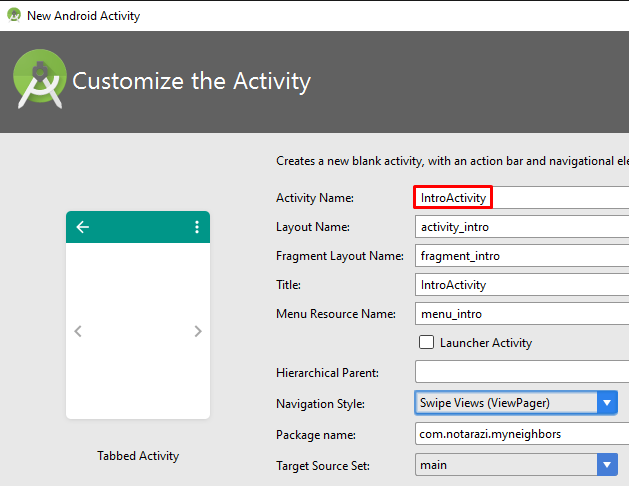

1) Add a new activity (tabbed)

Give the name IntroActivity.

2) Edit Layout Files

We want the page to appear full screen.
Therefore, delete the AppBarLayout widget element.
Change the fab icon from email to media play.
File: res/layout/activity_intro.xml
<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayoutxmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto"
   xmlns:tools="http://schemas.android.com/tools"
   android:id="@+id/main_content"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:fitsSystemWindows="true"
   tools:context="com.notarazi.myneighbors.IntroActivity">
   <android.support.design.widget.AppBarLayout
       android:id="@+id/appbar"
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:paddingTop="@dimen/appbar_padding_top"
       android:theme="@style/AppTheme.AppBarOverlay">
       <android.support.v7.widget.Toolbar
           android:id="@+id/toolbar"
           android:layout_width="match_parent"
           android:layout_height="?attr/actionBarSize"
           android:background="?attr/colorPrimary"
           app:layout_scrollFlags="scroll|enterAlways"
           app:popupTheme="@style/AppTheme.PopupOverlay">
       </android.support.v7.widget.Toolbar>
   </android.support.design.widget.AppBarLayout>
   <android.support.v4.view.ViewPager
       android:id="@+id/container"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       app:layout_behavior="@string/appbar_scrolling_view_behavior" />
   <android.support.design.widget.FloatingActionButton
       android:id="@+id/fab"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:layout_gravity="end|bottom"
       android:layout_margin="@dimen/fab_margin"
       android:src="@android:drawable/ic_media_play/>
</android.support.design.widget.CoordinatorLayout>

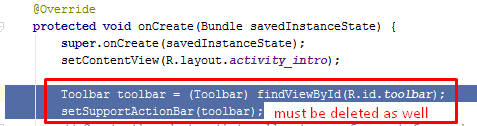

Since we have deleted the appbarlayout section, we have to delete any corresponding toolbar-related statement in IntroActivity.java as well.
File: IntroActivity.java
File: res/layout/fragment_intro.xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:paddingBottom="@dimen/activity_vertical_margin"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   android:background="@drawable/neighbors_background"
   tools:context="com.notarazi.myneighbors.IntroActivity$PlaceholderFragment">
   <TextView
       android:id="@+id/section_label"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content" />
</RelativeLayout>

3) Edit Controllers

At this stage we want to test page switching between main and intro screen.
File: MainActivity.java
package com.notarazi.myneighbors;
import android.content.Intent;
import android.os.Bundle;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.view.View;
import android.support.design.widget.NavigationView;
import android.support.v4.view.GravityCompat;
import android.support.v4.widget.DrawerLayout;
import android.support.v7.app.ActionBarDrawerToggle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.view.Menu;
import android.view.MenuItem;
public class MainActivity extends AppCompatActivity
       implements NavigationView.OnNavigationItemSelectedListener {
   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       showIntro();
       setContentView(R.layout.activity_main);
       Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
       setSupportActionBar(toolbar);
       FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
       fab.setOnClickListener(new View.OnClickListener() {
           @Override
           public void onClick(View view) {
               Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
                       .setAction("Action"null).show();
           }
       });
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(
               this, drawer, toolbar, R.string.navigation_drawer_open, R.string.navigation_drawer_close);
       drawer.setDrawerListener(toggle);
       toggle.syncState();
       NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);
       navigationView.setNavigationItemSelectedListener(this);
   }
   private void showIntro() {
       Intent intent = new Intent(this, IntroActivity.class);
       startActivity(intent);
   }
   @Override
   public void onBackPressed() {
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       if (drawer.isDrawerOpen(GravityCompat.START)) {
           drawer.closeDrawer(GravityCompat.START);
       } else {
           super.onBackPressed();
       }
   }
   @Override
   public boolean onCreateOptionsMenu(Menu menu) {
       // Inflate the menu; this adds items to the action bar if it is present.
       getMenuInflater().inflate(R.menu.main, menu);
       return true;
   }
   @Override
   public boolean onOptionsItemSelected(MenuItem item) {
       // Handle action bar item clicks here. The action bar will
       // automatically handle clicks on the Home/Up button, so long
       // as you specify a parent activity in AndroidManifest.xml.
       int id = item.getItemId();
       //noinspection SimplifiableIfStatement
       if (id == R.id.action_settings) {
           return true;
       }
       return super.onOptionsItemSelected(item);
   }
   @SuppressWarnings("StatementWithEmptyBody")
   @Override
   public boolean onNavigationItemSelected(MenuItem item) {
       // Handle navigation view item clicks here.
       int id = item.getItemId();
       if (id == R.id.nav_camera) {
           // Handle the camera action
       else if (id == R.id.nav_gallery) {
       } else if (id == R.id.nav_slideshow) {
       } else if (id == R.id.nav_manage) {
       } else if (id == R.id.nav_share) {
       } else if (id == R.id.nav_send) {
       }
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       drawer.closeDrawer(GravityCompat.START);
       return true;
   }
}
File: IntroActivity.java
package com.notarazi.myneighbors;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;
import android.support.v4.view.ViewPager;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
public class IntroActivity extends AppCompatActivity {
   /**
    * The {@link android.support.v4.view.PagerAdapter} that will provide
    * fragments for each of the sections. We use a
    * {@link FragmentPagerAdapter} derivative, which will keep every
    * loaded fragment in memory. If this becomes too memory intensive, it
    * may be best to switch to a
    * {@link android.support.v4.app.FragmentStatePagerAdapter}.
    */
   private SectionsPagerAdapter mSectionsPagerAdapter;
   /**
    * The {@link ViewPager} that will host the section contents.
    */
   private ViewPager mViewPager;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_intro);
       Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
       setSupportActionBar(toolbar);
       // Create the adapter that will return a fragment for each of the three
       // primary sections of the activity.
       mSectionsPagerAdapter new SectionsPagerAdapter(getSupportFragmentManager());
       // Set up the ViewPager with the sections adapter.
       mViewPager = (ViewPager) findViewById(R.id.container);
       mViewPager.setAdapter(mSectionsPagerAdapter);
       FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
       fab.setOnClickListener(new View.OnClickListener() {
           @Override
           public void onClick(View view) {
               finish();
           }
       });
   }
   @Override
   public boolean onCreateOptionsMenu(Menu menu) {
       // Inflate the menu; this adds items to the action bar if it is present.
       getMenuInflater().inflate(R.menu.menu_intro, menu);
       return true;
   }
   @Override
   public boolean onOptionsItemSelected(MenuItem item) {
       // Handle action bar item clicks here. The action bar will
       // automatically handle clicks on the Home/Up button, so long
       // as you specify a parent activity in AndroidManifest.xml.
       int id = item.getItemId();
       //noinspection SimplifiableIfStatement
       if (id == R.id.action_settings) {
           return true;
       }
       return super.onOptionsItemSelected(item);
   }
   /**
    * A placeholder fragment containing a simple view.
    */
   public static class PlaceholderFragment extends Fragment {
       /**
        * The fragment argument representing the section number for this
        * fragment.
        */
       private static final String ARG_SECTION_NUMBER "section_number";
       public PlaceholderFragment() {
       }
       /**
        * Returns a new instance of this fragment for the given section
        * number.
        */
       public static PlaceholderFragment newInstance(int sectionNumber) {
           PlaceholderFragment fragment = new PlaceholderFragment();
           Bundle args = new Bundle();
           args.putInt(ARG_SECTION_NUMBER, sectionNumber);
           fragment.setArguments(args);
           return fragment;
       }
       @Override
       public View onCreateView(LayoutInflater inflater, ViewGroup container,
                                Bundle savedInstanceState) {
           View rootView = inflater.inflate(R.layout.fragment_intro, container,false);
           TextView textView = (TextView) rootView.findViewById(R.id.section_label);
           textView.setText(getString(R.string.section_format, getArguments().getInt(ARG_SECTION_NUMBER)));
           return rootView;
       }
   }
   /**
    * A {@link FragmentPagerAdapter} that returns a fragment corresponding to
    * one of the sections/tabs/pages.
    */
   public class SectionsPagerAdapter extends FragmentPagerAdapter {
       public SectionsPagerAdapter(FragmentManager fm) {
           super(fm);
       }
       @Override
       public Fragment getItem(int position) {
           // getItem is called to instantiate the fragment for the given page.
           // Return a PlaceholderFragment (defined as a static inner class below).
           return PlaceholderFragment.newInstance(position + 1);
       }
       @Override
       public int getCount() {
           // Show 3 total pages.
           return 3;
       }
       @Override
       public CharSequence getPageTitle(int position) {
           switch (position) {
               case 0:
                   return "SECTION 1";
               case 1:
                   return "SECTION 2";
               case 2:
                   return "SECTION 3";
           }
           return null;
       }
   }
}

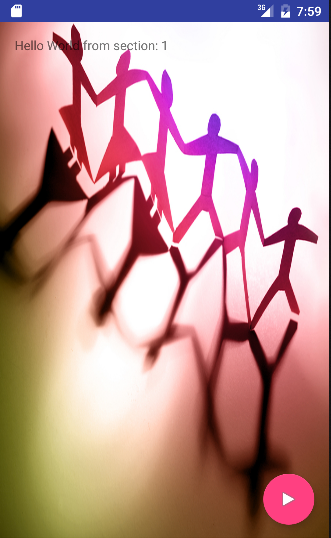

Intro Screen with Next button.

4) Add Option Menu Item (optional)

4.1) Add Menu

File: res/menu/main.xml
<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto">
   <item
       android:id="@+id/action_settings"
       android:orderInCategory="100"
       android:title="@string/action_settings"
       app:showAsAction="never" />
   <item
       android:id="@+id/action_intro"
       android:orderInCategory="100"
       android:title="Introduction"
       app:showAsAction="never" />
</menu>
4.2) Add Action
File: MainActivity.java
package com.notarazi.myneighbors;
import android.content.Intent;
import android.os.Bundle;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.view.View;
import android.support.design.widget.NavigationView;
import android.support.v4.view.GravityCompat;
import android.support.v4.widget.DrawerLayout;
import android.support.v7.app.ActionBarDrawerToggle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.view.Menu;
import android.view.MenuItem;
public class MainActivity extends AppCompatActivity
       implements NavigationView.OnNavigationItemSelectedListener {
   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       showIntro();
       setContentView(R.layout.activity_main);
       Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
       setSupportActionBar(toolbar);
       FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
       fab.setOnClickListener(new View.OnClickListener() {
           @Override
           public void onClick(View view) {
               Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
                       .setAction("Action"null).show();
           }
       });
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(
               this, drawer, toolbar, R.string.navigation_drawer_open, R.string.navigation_drawer_close);
       drawer.setDrawerListener(toggle);
       toggle.syncState();
       NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);
       navigationView.setNavigationItemSelectedListener(this);
   }
   private void showIntro() {
       Intent intent = new Intent(this, IntroActivity.class);
       startActivity(intent);
   }
   @Override
   public void onBackPressed() {
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       if (drawer.isDrawerOpen(GravityCompat.START)) {
           drawer.closeDrawer(GravityCompat.START);
       } else {
           super.onBackPressed();
       }
   }
   @Override
   public boolean onCreateOptionsMenu(Menu menu) {
       // Inflate the menu; this adds items to the action bar if it is present.
       getMenuInflater().inflate(R.menu.main, menu);
       return true;
   }
   @Override
   public boolean onOptionsItemSelected(MenuItem item) {
       // Handle action bar item clicks here. The action bar will
       // automatically handle clicks on the Home/Up button, so long
       // as you specify a parent activity in AndroidManifest.xml.
       int id = item.getItemId();
       //noinspection SimplifiableIfStatement
       if (id == R.id.action_settings) {
           return true;
       }
       if (id == R.id.action_intro) {
           showIntro();
           return true;
       }
       return super.onOptionsItemSelected(item);
   }
   @SuppressWarnings("StatementWithEmptyBody")
   @Override
   public boolean onNavigationItemSelected(MenuItem item) {
       // Handle navigation view item clicks here.
       int id = item.getItemId();
       if (id == R.id.nav_camera) {
           // Handle the camera action
       else if (id == R.id.nav_gallery) {
       } else if (id == R.id.nav_slideshow) {
       } else if (id == R.id.nav_manage) {
       } else if (id == R.id.nav_share) {
       } else if (id == R.id.nav_send) {
       }
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       drawer.closeDrawer(GravityCompat.START);
       return true;
   }
}
Intro Screen with Next button.
Menu Item to go to Intro Screen.


.

No comments:

Post a Comment
