102 MySuperHero Android ListView - Static and Dynamic


.
102 MySuperHero Android ListView - Static and Dynamic
We are going to add a list of Super Heroes to the SuperHeroesActivity
First, we will use a static list. Static list uses a simple XML resource file.
Then, we will change to dynamic list. Dynamic list requires the use of adapter.

0) Starting Up

1) Static List

1.1) Prepare List Resource

File: res/values/strings.xml
<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="app_name">MySuperHero</string>
    <string name="hello_world">Hello world!</string>
    <string name="menu_settings">Settings</string>
    <string name="title_activity_super_heroes">SuperHeroesActivity</string>
    <string-array name="superheroes_array">
        <item>Superman</item>
        <item>Spiderman</item>
        <item>Batman</item>
        <item>Ironman</item>
        <item>Ultraman</item>
        <item>Pacman</item>
        <item>Roboman</item>
    </string-array>
</resources>

1.2) Edit SuperHeroes Layout

Replace the default codes with the below codes.
File: res/layout/activity_super_heroes.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical" >
        <Button
            android:id="@+id/btn_add_superhero"
            android:layout_width="fill_parent"
            android:layout_height="match_parent"
            android:text="Add Super Hero" />
<ListView
    android:id="@+id/lvw_superheroes"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:entries="@array/superheroes_array"
    />
</LinearLayout>

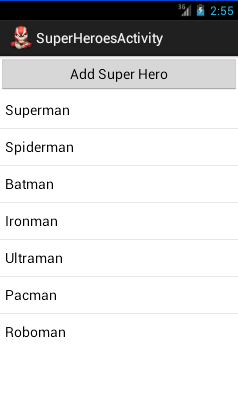

OUTCOME.
Static List cannot be modified.
In order to make the list editable, we need to change the codes to adapter object.

2) Dynamic List

We are going to add codes to make the list dynamic.
The codes may look complicated and confusing.

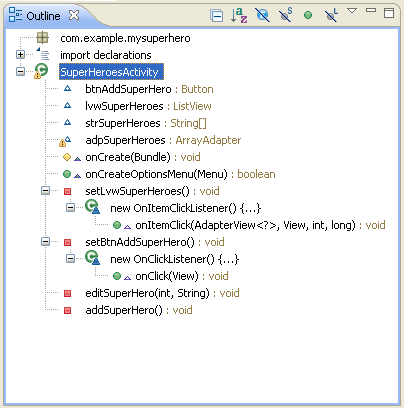

The Outline screenshot below may help you understand how these codes are structured.
  • First we declare four class members; btnAddSuperHero, lvwSuperHeroes, strSuperHeroes and adpSuperHeroes.
  • In onCreate method, we have method calls setLvwSuperHeroes and setBtnAddSuperHero
  • setLvwSuperHeroes adds list item and registers onClick that will call editSuperHero method when the list is clicked.
  • setBtnAddSuperhero registers onClick that will call addSuperHero method when the button is clicked.

2.1) Edit Controller

File: SuperHeroesActivity.java
package com.example.mysuperhero;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class SuperHeroesActivity extends Activity {
        Button btnAddSuperHero;
        ListView lvwSuperHeroes;
        String[] strSuperHeroes;
        ArrayAdapter adpSuperHeroes;

        @Override
        protected void onCreate(Bundle savedInstanceState) {
                super.onCreate(savedInstanceState);
                setContentView(R.layout.activity_super_heroes);
                setLvwSuperHeroes();
                setBtnAddSuperHero();
        }
        @Override
        public boolean onCreateOptionsMenu(Menu menu) {
                // Inflate the menu; this adds items to the action bar if it is present.
                getMenuInflater().inflate(R.menu.activity_super_heroes, menu);
                return true;
        }
         private void setLvwSuperHeroes(){
                 //bind object
        lvwSuperHeroes = (ListView) findViewById(R.id.lvw_superheroes);

        //Add new values to array
        strSuperHeroes =new String[] {"Superman","Spiderman","Batman","Ironman","Ultraman", "Pacman", "Roboman"};

        //Create ArrayList from strBuddies
        List<String> values = new ArrayList<String>(Arrays.asList(strSuperHeroes));

        //Create Adapter to load ArrayList
        adpSuperHeroes = new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, values);

        //Plug adpSuperHeroes to lvwSUperHeroes
        lvwSuperHeroes.setAdapter(adpSuperHeroes);

        //set onclick listener for listview
        lvwSuperHeroes.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                editSuperHero(position, ((TextView) view).getText().toString());
            }
                });
            }
                private void setBtnAddSuperHero() {
                        btnAddSuperHero = (Button) findViewById(R.id.btn_add_superhero);
                        btnAddSuperHero.setOnClickListener(new OnClickListener() {
                                @Override
                                public void onClick(View view) {
                                        addSuperHero();
                                }
                        });
                }
                private void editSuperHero(int position, String text){
                Toast.makeText(getApplicationContext(),"Edit SuperHero.\nPosition:"+position+"\nText:"+text+"\n",
                        Toast.LENGTH_SHORT).show();
            }
            private void addSuperHero(){
                Toast.makeText(getApplicationContext(),"Add SuperHero.",
                        Toast.LENGTH_SHORT).show();
            }
}

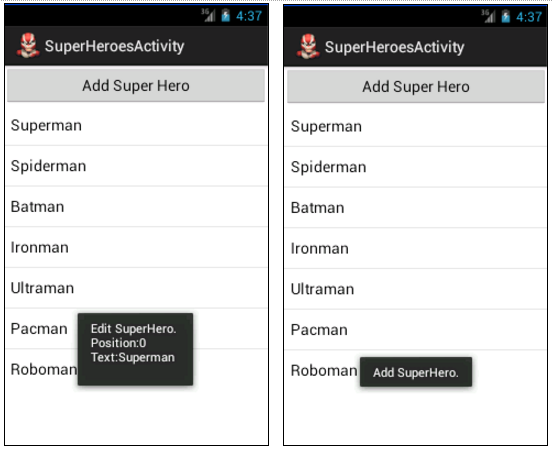

OUTCOME.
When the user clicks the list item, e.g. Superman, the apps will throw a toast displaying the text “Edit SuperHero” and the list item position and its text value.

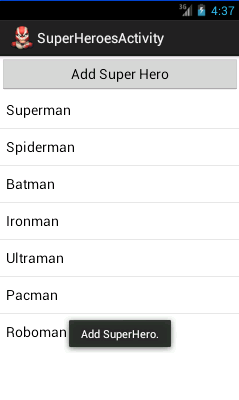

When the user clicks the Add Super Hero button, the apps throws a toast displaying the text “Add SuperHero”.
Since we do not use the string resources anymore, it is safe to delete the entries attribute in the layout and the corresponding string values.
File: res/layout/activity_super_heroes.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical" >
        <Button
            android:id="@+id/btn_add_superhero"
            android:layout_width="fill_parent"
            android:layout_height="match_parent"
            android:text="Add Super Hero" />
<ListView
    android:id="@+id/lvw_superheroes"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:entries="@array/superheroes_array"
    />
</LinearLayout>
File: res/values/strings.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="app_name">MySuperHero</string>
    <string name="hello_world">Hello world!</string>
    <string name="menu_settings">Settings</string>
    <string name="title_activity_super_heroes">SuperHeroesActivity</string>
    <string-array name="superheroes_array">
        <item>Superman</item>
        <item>Spiderman</item>
        <item>Batman</item>
        <item>Ironman</item>
        <item>Ultraman</item>
        <item>Pacman</item>
        <item>Roboman</item>
    </string-array>
</resources>

DOWNLOAD:


.
