How To Switch Activity and Send Data
Using Android Studio 1.4
1) Create New Blank Activitiy
Follow the wizard to create New Blank Activity.
2) Edit res/layout/content_main.xml
Add Linear Layout containing Form elements.
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:app="http://schemas.android.com/apk/res-auto"android:layout_width="match_parent"
android:layout_height="match_parent"android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:paddingBottom="@dimen/activity_vertical_margin"
app:layout_behavior="@string/appbar_scrolling_view_behavior"
tools:showIn="@layout/activity_main" tools:context=".MainActivity">
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
>
<TextView android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="Name: "/>
<EditText android:id="@+id/name"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_marginBottom="10dip"/>
<TextView
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="Email: "
/>
<EditText android:id="@+id/email"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_marginBottom="10dip"/>
<Button android:id="@+id/btnNextScreen"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="Send to Next Screen"
android:layout_marginTop="15dip"/>
</LinearLayout>
</RelativeLayout>
|

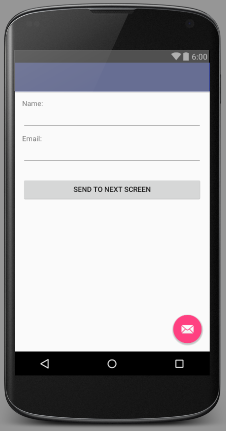

OUTCOME.
(content_main.xml in DESIGN mode)

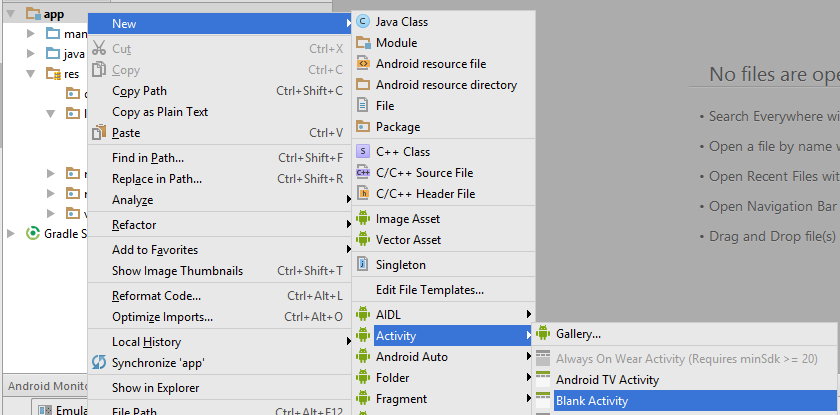

3) Add Second Activity
Add New/Activity/BlankActivity
Accept “Activity Name=Main2Activity” and “Layout Name=activity_main2”
Edit res/layout/content_main2.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:app="http://schemas.android.com/apk/res-auto"android:layout_width="match_parent"
android:layout_height="match_parent"android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:paddingBottom="@dimen/activity_vertical_margin"
app:layout_behavior="@string/appbar_scrolling_view_behavior"
tools:showIn="@layout/activity_main2"
tools:context="com.notarazi.switchactivity1.Main2Activity">
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="You Entered..."
android:textSize="25dip"
android:gravity="center"
android:layout_margin="15dip"/>
<TextView android:id="@+id/txtName"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_margin="15dip"
android:textSize="18dip"/>
<TextView android:id="@+id/txtEmail"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_margin="15dip"
android:textSize="18dip"/>
<Button android:id="@+id/btnClose"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_marginTop="15dip"
android:text="Close"/>
</LinearLayout>
</RelativeLayout>
|

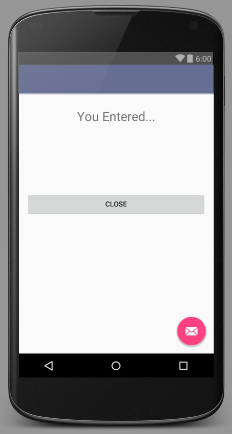

OUTCOME.
(content_main2.xml in DESIGN mode).
4) Edit MainActivity.java
package com.notarazi.switchactivity1;
import android.content.Intent;
import android.os.Bundle;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.util.Log;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
public class MainActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
final Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
setSupportActionBar(toolbar);
final EditText inputName = (EditText) findViewById(R.id.name);
final EditText inputEmail = (EditText) findViewById(R.id.email);
Button btnNextScreen = (Button) findViewById(R.id.btnNextScreen);
//Listening to button event
btnNextScreen.setOnClickListener(new View.OnClickListener() {
public void onClick(View arg0) {
//Starting a new Intent
Intent nextScreen = new Intent(getApplicationContext(), Main2Activity.class);
//Sending data to another Activity
nextScreen.putExtra("name", inputName.getText().toString());
nextScreen.putExtra("email", inputEmail.getText().toString());
Log.e("n", inputName.getText() + "." + inputEmail.getText());
startActivity(nextScreen);
}
});
FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
fab.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
.setAction("Action", null).show();
}
});
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.menu_main, menu);
return true;
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
// Handle action bar item clicks here. The action bar will
// automatically handle clicks on the Home/Up button, so long
// as you specify a parent activity in AndroidManifest.xml.
int id = item.getItemId();
//noinspection SimplifiableIfStatement
if (id == R.id.action_settings) {
return true;
}
return super.onOptionsItemSelected(item);
}
}
|
5) Edit Main2Activity.java
package com.notarazi.switchactivity1;
import android.content.Intent;
import android.os.Bundle;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
public class Main2Activity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main2);
Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
setSupportActionBar(toolbar);
TextView txtName = (TextView) findViewById(R.id.txtName);
TextView txtEmail = (TextView) findViewById(R.id.txtEmail);
Button btnClose = (Button) findViewById(R.id.btnClose);
Intent i = getIntent();
// Receiving the Data
String name = i.getStringExtra("name");
String email = i.getStringExtra("email");
Log.e("Second Screen", name + "." + email);
// Displaying Received data
txtName.setText(name);
txtEmail.setText(email);
// Binding Click event to Button
btnClose.setOnClickListener(new View.OnClickListener() {
public void onClick(View arg0) {
//Closing SecondScreen Activity
finish();
}
});
FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
fab.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
.setAction("Action", null).show();
}
});
}
}
|
