103-Android Studio 1.5 Navigation Drawer Activity Template


.
103-Android Studio 1.5 Navigation Drawer Activity Template
Continue from Tutorial 102

1) Create New Project

1.1) Configure New Project

Application Name: MyDrawer1
Company Domain: notarazi.com
Package Name: com.notarazi.mydrawer1 (auto-generated)
Project Location: C:\Project1\MyDrawer1\ (auto-generated)

1.2) Select Target Device

1.3) Add Activity

Select Navigation Drawer Activity.

1.4) Customize the Activity

Accept defaults.

2) Observe the project codes

2.1) build.gradle (module:app)

apply plugin'com.android.application'
android {
   compileSdkVersion 23
   buildToolsVersion "23.0.2"
   defaultConfig {
       applicationId "com.notarazi.mydrawer1"
       minSdkVersion 15
       targetSdkVersion 23
       versionCode 1
       versionName "1.0"
   }
   buildTypes {
       release {
           minifyEnabled false
           proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
       }
   }
}
dependencies {
   compile fileTree(dir'libs'include: ['*.jar'])
   testCompile 'junit:junit:4.12'
   compile 'com.android.support:appcompat-v7:23.1.1'
   compile 'com.android.support:design:23.1.1'
}

2.2) AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="com.notarazi.mydrawer1">
   <application
       android:allowBackup="true"
       android:icon="@mipmap/ic_launcher"
       android:label="@string/app_name"
       android:supportsRtl="true"
       android:theme="@style/AppTheme">
       <activity
           android:name=".MainActivity"
           android:label="@string/app_name"
           android:theme="@style/AppTheme.NoActionBar">
           <intent-filter>
               <action android:name="android.intent.action.MAIN" />
               <category android:name="android.intent.category.LAUNCHER" />
           </intent-filter>
       </activity>
   </application>
</manifest>

2.3) MainActivity.java

package com.notarazi.mydrawer1;
import android.os.Bundle;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.view.View;
import android.support.design.widget.NavigationView;
import android.support.v4.view.GravityCompat;
import android.support.v4.widget.DrawerLayout;
import android.support.v7.app.ActionBarDrawerToggle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.view.Menu;
import android.view.MenuItem;
public class MainActivity extends AppCompatActivity
       implements NavigationView.OnNavigationItemSelectedListener {
   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);
       Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
       setSupportActionBar(toolbar);
       FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
       fab.setOnClickListener(new View.OnClickListener() {
           @Override
           public void onClick(View view) {
               Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
                       .setAction("Action"null).show();
           }
       });
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(
               this, drawer, toolbar, R.string.navigation_drawer_open, R.string.navigation_drawer_close);
       drawer.setDrawerListener(toggle);
       toggle.syncState();
       NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);
       navigationView.setNavigationItemSelectedListener(this);
   }
   @Override
   public void onBackPressed() {
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       if (drawer.isDrawerOpen(GravityCompat.START)) {
           drawer.closeDrawer(GravityCompat.START);
       } else {
           super.onBackPressed();
       }
   }
   @Override
   public boolean onCreateOptionsMenu(Menu menu) {
       // Inflate the menu; this adds items to the action bar if it is present.
       getMenuInflater().inflate(R.menu.main, menu);
       return true;
   }
   @Override
   public boolean onOptionsItemSelected(MenuItem item) {
       // Handle action bar item clicks here. The action bar will
       // automatically handle clicks on the Home/Up button, so long
       // as you specify a parent activity in AndroidManifest.xml.
       int id = item.getItemId();
       //noinspection SimplifiableIfStatement
       if (id == R.id.action_settings) {
           return true;
       }
       return super.onOptionsItemSelected(item);
   }
   @SuppressWarnings("StatementWithEmptyBody")
   @Override
   public boolean onNavigationItemSelected(MenuItem item) {
       // Handle navigation view item clicks here.
       int id = item.getItemId();
       if (id == R.id.nav_camera) {
           // Handle the camera action
       else if (id == R.id.nav_gallery) {
       } else if (id == R.id.nav_slideshow) {
       } else if (id == R.id.nav_manage) {
       } else if (id == R.id.nav_share) {
       } else if (id == R.id.nav_send) {
       }
       DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
       drawer.closeDrawer(GravityCompat.START);
       return true;
   }
}

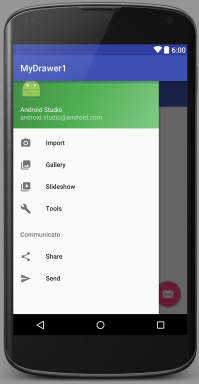

3) Navigation Drawer Project UI Layout

3.1) res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.DrawerLayoutxmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto"
   xmlns:tools="http://schemas.android.com/tools"
   android:id="@+id/drawer_layout"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:fitsSystemWindows="true"
   tools:openDrawer="start">
   <include
       layout="@layout/app_bar_main"
       android:layout_width="match_parent"
       android:layout_height="match_parent" />
   <android.support.design.widget.NavigationView
       android:id="@+id/nav_view"
       android:layout_width="wrap_content"
       android:layout_height="match_parent"
       android:layout_gravity="start"
       android:fitsSystemWindows="true"
       app:headerLayout="@layout/nav_header_main"
       app:menu="@menu/activity_main_drawer/>
</android.support.v4.widget.DrawerLayout>

3.2) res/layout/app_bar_main

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayoutxmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:fitsSystemWindows="true"
   tools:context="com.notarazi.mydrawer1.MainActivity">
   <android.support.design.widget.AppBarLayout
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:theme="@style/AppTheme.AppBarOverlay">
       <android.support.v7.widget.Toolbar
           android:id="@+id/toolbar"
           android:layout_width="match_parent"
           android:layout_height="?attr/actionBarSize"
           android:background="?attr/colorPrimary"
           app:popupTheme="@style/AppTheme.PopupOverlay" />
   </android.support.design.widget.AppBarLayout>
   <include layout="@layout/content_main/>
   <android.support.design.widget.FloatingActionButton
       android:id="@+id/fab"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:layout_gravity="bottom|end"
       android:layout_margin="@dimen/fab_margin"
       android:src="@android:drawable/ic_dialog_email" />
</android.support.design.widget.CoordinatorLayout>

3.3) res/layout/nav_header_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:layout_width="match_parent"
   android:layout_height="@dimen/nav_header_height"
   android:background="@drawable/side_nav_bar"
   android:gravity="bottom"
   android:orientation="vertical"
   android:paddingBottom="@dimen/activity_vertical_margin"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   android:theme="@style/ThemeOverlay.AppCompat.Dark">
   <ImageView
       android:id="@+id/imageView"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:paddingTop="@dimen/nav_header_vertical_spacing"
       android:src="@android:drawable/sym_def_app_icon" />
   <TextView
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:paddingTop="@dimen/nav_header_vertical_spacing"
       android:text="Android Studio"
       android:textAppearance="@style/TextAppearance.AppCompat.Body1" />
   <TextView
       android:id="@+id/textView"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:text="android.studio@android.com" />
</LinearLayout>

3.4) res/layout/content_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:paddingBottom="@dimen/activity_vertical_margin"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   app:layout_behavior="@string/appbar_scrolling_view_behavior"
   tools:context="com.notarazi.mydrawer1.MainActivity"
   tools:showIn="@layout/app_bar_main">
   <TextView
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:text="Hello World!" />
</RelativeLayout>

DOWNLOAD


.
