105-Android Studio 1.5 Master Detail Activity Template
Continue from Tutorial 104
|

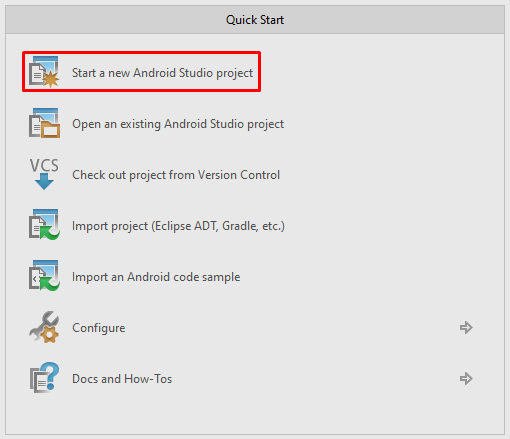

1) Create New Project

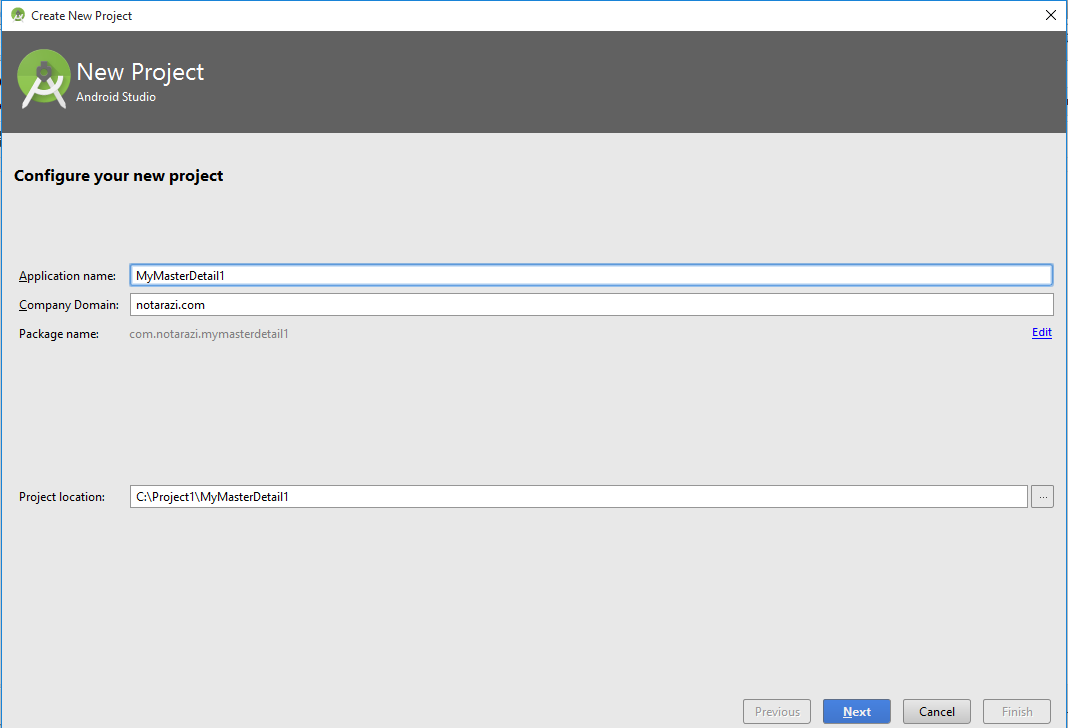

1.1) Configure New Project
Application Name: MyMasterDetail1
Company Domain: notarazi.com
Package Name: com.notarazi.mymasterdetail1 (auto-generated)
Project Location: C:\Project1\MyMasterDetail1\ (auto-generated)
1.2) Select Target Device

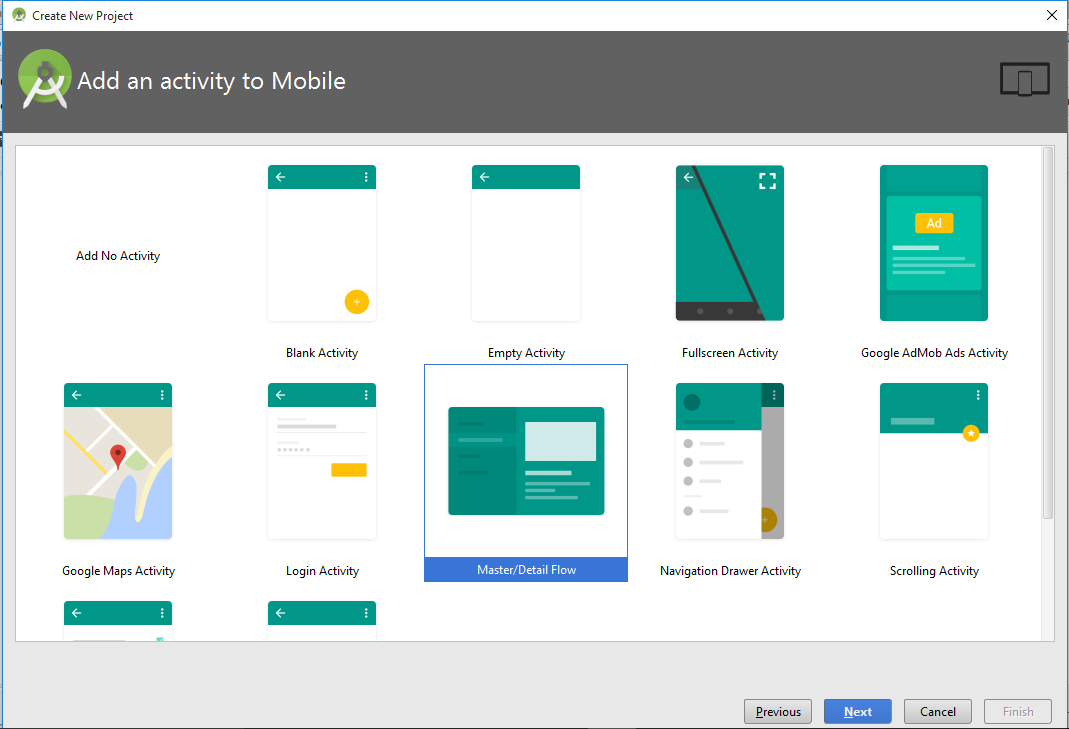

1.3) Add Activity
Select Master/Detail Flow.
1.4) Customize The Activity
2) Observe the project codes
2.1) AndroidManifest
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.notarazi.mymasterdetail1">
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme">
<activity
android:name=".ItemListActivity"
android:label="@string/app_name"
android:theme="@style/AppTheme.NoActionBar">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity
android:name=".ItemDetailActivity"
android:label="@string/title_item_detail"
android:parentActivityName=".ItemListActivity"
android:theme="@style/AppTheme.NoActionBar">
<meta-data
android:name="android.support.PARENT_ACTIVITY"
android:value="com.notarazi.mymasterdetail1.ItemListActivity" />
</activity>
</application>
</manifest>
|
2.1) MainActivity.java
package com.notarazi.mymasterdetail1;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.support.annotation.NonNull;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.support.v7.widget.Toolbar;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
import com.notarazi.mymasterdetail1.dummy.DummyContent;
import java.util.List;
/**
* An activity representing a list of Items. This activity
* has different presentations for handset and tablet-size devices. On
* handsets, the activity presents a list of items, which when touched,
* lead to a {@link ItemDetailActivity} representing
* item details. On tablets, the activity presents the list of items and
* item details side-by-side using two vertical panes.
*/
public class ItemListActivity extends AppCompatActivity {
/**
* Whether or not the activity is in two-pane mode, i.e. running on a tablet
* device.
*/
private boolean mTwoPane;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_item_list);
Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
setSupportActionBar(toolbar);
toolbar.setTitle(getTitle());
FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
fab.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
.setAction("Action", null).show();
}
});
View recyclerView = findViewById(R.id.item_list);
assert recyclerView != null;
setupRecyclerView((RecyclerView) recyclerView);
if (findViewById(R.id.item_detail_container) != null) {
// The detail container view will be present only in the
// large-screen layouts (res/values-w900dp).
// If this view is present, then the
// activity should be in two-pane mode.
mTwoPane = true;
}
}
private void setupRecyclerView(@NonNull RecyclerView recyclerView) {
recyclerView.setAdapter(new SimpleItemRecyclerViewAdapter(DummyContent.ITEMS));
}
public class SimpleItemRecyclerViewAdapter
extends RecyclerView.Adapter<SimpleItemRecyclerViewAdapter.ViewHolder> {
private final List<DummyContent.DummyItem> mValues;
public SimpleItemRecyclerViewAdapter(List<DummyContent.DummyItem> items) {
mValues = items;
}
@Override
public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
View view = LayoutInflater.from(parent.getContext())
.inflate(R.layout.item_list_content, parent, false);
return new ViewHolder(view);
}
@Override
public void onBindViewHolder(final ViewHolder holder, int position) {
holder.mItem = mValues.get(position);
holder.mIdView.setText(mValues.get(position).id);
holder.mContentView.setText(mValues.get(position).content);
holder.mView.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (mTwoPane) {
Bundle arguments = new Bundle();
arguments.putString(ItemDetailFragment.ARG_ITEM_ID,holder.mItem.id);
ItemDetailFragment fragment = new ItemDetailFragment();
fragment.setArguments(arguments);
getSupportFragmentManager().beginTransaction()
.replace(R.id.item_detail_container, fragment)
.commit();
} else {
Context context = v.getContext();
Intent intent = new Intent(context, ItemDetailActivity.class);
intent.putExtra(ItemDetailFragment.ARG_ITEM_ID,holder.mItem.id);
context.startActivity(intent);
}
}
});
}
@Override
public int getItemCount() {
return mValues.size();
}
public class ViewHolder extends RecyclerView.ViewHolder {
public final View mView;
public final TextView mIdView;
public final TextView mContentView;
public DummyContent.DummyItem mItem;
public ViewHolder(View view) {
super(view);
mView = view;
mIdView = (TextView) view.findViewById(R.id.id);
mContentView = (TextView) view.findViewById(R.id.content);
}
@Override
public String toString() {
return super.toString() + " '" + mContentView.getText() + "'";
}
}
}
}
|
2.2) res/layout/activity_item_list
<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayoutxmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:fitsSystemWindows="true"
tools:context=".MainActivity">
<android.support.design.widget.AppBarLayout
android:id="@+id/app_bar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:theme="@style/AppTheme.AppBarOverlay">
<android.support.v7.widget.Toolbar
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?attr/actionBarSize"
app:popupTheme="@style/AppTheme.PopupOverlay" />
</android.support.design.widget.AppBarLayout>
<FrameLayout
android:id="@+id/frameLayout"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:layout_behavior="@string/appbar_scrolling_view_behavior">
<include layout="@layout/item_list" />
</FrameLayout>
<android.support.design.widget.FloatingActionButton
android:id="@+id/fab"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="bottom|end"
android:layout_margin="@dimen/fab_margin"
android:src="@android:drawable/ic_dialog_email" />
</android.support.design.widget.CoordinatorLayout>
|
2.3) res/layout/item_list.xml
2.3.1) res/layout/item_list.xml
<?xml version="1.0" encoding="utf-8"?>
<android.support.v7.widget.RecyclerViewxmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/item_list"
android:name="com.notarazi.mymasterdetail1.ItemListFragment"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_marginLeft="16dp"
android:layout_marginRight="16dp"
app:layoutManager="LinearLayoutManager"
tools:context="com.notarazi.mymasterdetail1.ItemListActivity"
tools:listitem="@layout/item_list_content" />
|
2.3.2) res/layout/item_list.xml (w900dp)
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_marginLeft="16dp"
android:layout_marginRight="16dp"
android:baselineAligned="false"
android:divider="?android:attr/dividerHorizontal"
android:orientation="horizontal"
android:showDividers="middle"
tools:context="com.notarazi.mymasterdetail1.ItemListActivity">
<!--
This layout is a two-pane layout for the Items
master/detail flow.
-->
<android.support.v7.widget.RecyclerViewxmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/item_list"
android:name="com.notarazi.mymasterdetail1.ItemListFragment"
android:layout_width="@dimen/item_width"
android:layout_height="match_parent"
android:layout_marginLeft="16dp"
android:layout_marginRight="16dp"
app:layoutManager="LinearLayoutManager"
tools:context="com.notarazi.mymasterdetail1.ItemListActivity"
tools:listitem="@layout/item_list_content" />
<FrameLayout
android:id="@+id/item_detail_container"
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_weight="3" />
</LinearLayout>
|

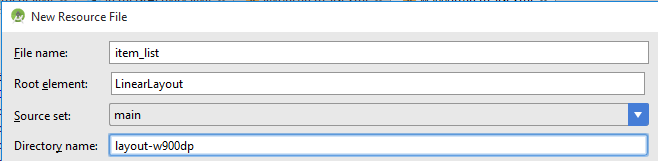

How do we create layout variation file?
Right-click layout item in the Project Explorer, select New/Layout Resource File...
Type layout-w...dp in the Directory name.
|
2.4) Detail Controller (Java) Files
2.4.1) ItemDetailActivity.java
package com.notarazi.mymasterdetail1;
import android.content.Intent;
import android.os.Bundle;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.widget.Toolbar;
import android.view.View;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.app.ActionBar;
import android.support.v4.app.NavUtils;
import android.view.MenuItem;
/**
* An activity representing a single Item detail screen. This
* activity is only used narrow width devices. On tablet-size devices,
* item details are presented side-by-side with a list of items
* in a {@link ItemListActivity}.
*/
public class ItemDetailActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_item_detail);
Toolbar toolbar = (Toolbar) findViewById(R.id.detail_toolbar);
setSupportActionBar(toolbar);
FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
fab.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
Snackbar.make(view, "Replace with your own detail action", Snackbar.LENGTH_LONG)
.setAction("Action", null).show();
}
});
// Show the Up button in the action bar.
ActionBar actionBar = getSupportActionBar();
if (actionBar != null) {
actionBar.setDisplayHomeAsUpEnabled(true);
}
// savedInstanceState is non-null when there is fragment state
// saved from previous configurations of this activity
// (e.g. when rotating the screen from portrait to landscape).
// In this case, the fragment will automatically be re-added
// to its container so we don't need to manually add it.
// For more information, see the Fragments API guide at:
//
// http://developer.android.com/guide/components/fragments.html
//
if (savedInstanceState == null) {
// Create the detail fragment and add it to the activity
// using a fragment transaction.
Bundle arguments = new Bundle();
arguments.putString(ItemDetailFragment.ARG_ITEM_ID,
getIntent().getStringExtra(ItemDetailFragment.ARG_ITEM_ID));
ItemDetailFragment fragment = new ItemDetailFragment();
fragment.setArguments(arguments);
getSupportFragmentManager().beginTransaction()
.add(R.id.item_detail_container, fragment)
.commit();
}
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
int id = item.getItemId();
if (id == android.R.id.home) {
// This ID represents the Home or Up button. In the case of this
// activity, the Up button is shown. Use NavUtils to allow users
// to navigate up one level in the application structure. For
// more details, see the Navigation pattern on Android Design:
//
// http://developer.android.com/design/patterns/navigation.html#up-vs-back
//
NavUtils.navigateUpTo(this, new Intent(this, ItemListActivity.class));
return true;
}
return super.onOptionsItemSelected(item);
}
}
|
2.4.2) ItemDetailFragment.java
package com.notarazi.mymasterdetail1;
import android.app.Activity;
import android.support.design.widget.CollapsingToolbarLayout;
import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
import com.notarazi.mymasterdetail1.dummy.DummyContent;
/**
* A fragment representing a single Item detail screen.
* This fragment is either contained in a {@link ItemListActivity}
* in two-pane mode (on tablets) or a {@link ItemDetailActivity}
* on handsets.
*/
public class ItemDetailFragment extends Fragment {
/**
* The fragment argument representing the item ID that this fragment
* represents.
*/
public static final String ARG_ITEM_ID = "item_id";
/**
* The dummy content this fragment is presenting.
*/
private DummyContent.DummyItem mItem;
/**
* Mandatory empty constructor for the fragment manager to instantiate the
* fragment (e.g. upon screen orientation changes).
*/
public ItemDetailFragment() {
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
if (getArguments().containsKey(ARG_ITEM_ID)) {
// Load the dummy content specified by the fragment
// arguments. In a real-world scenario, use a Loader
// to load content from a content provider.
mItem = DummyContent.ITEM_MAP.get(getArguments().getString(ARG_ITEM_ID));
Activity activity = this.getActivity();
CollapsingToolbarLayout appBarLayout = (CollapsingToolbarLayout) activity.findViewById(R.id.toolbar_layout);
if (appBarLayout != null) {
appBarLayout.setTitle(mItem.content);
}
}
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View rootView = inflater.inflate(R.layout.item_detail, container, false);
// Show the dummy content as text in a TextView.
if (mItem != null) {
((TextView) rootView.findViewById(R.id.item_detail)).setText(mItem.details);
}
return rootView;
}
}
|
DOWNLOAD
.
No comments:
Post a Comment
