101 My Neighbors Apps

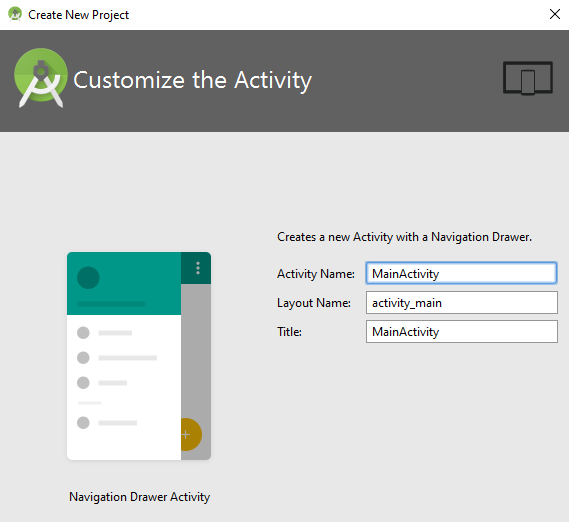

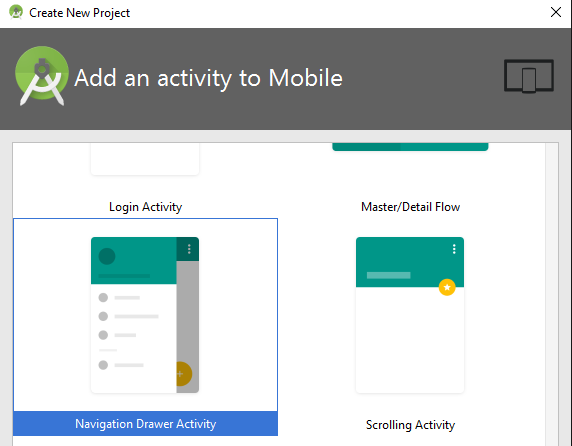

1) Create New Project
Project Name: MyNeighbors
2) Add Splash Activity
Add a new (empty) activity and give the name SplashActivity.
2.1) Add drawable images
DOWNLOAD: drawable.zip
2.2) Edit Custom Style
This involves creating drawables definition, color and themes.
|
File: res/drawable/background_splash.xml
<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
<item
android:drawable="@color/gray"/>
<item>
<bitmap
android:gravity="center"
android:src="@drawable/neighbors_logo"/>
</item>
</layer-list>
|
File: res/values/colors.xml
<?xml version="1.0" encoding="utf-8"?>
<resources>
<color name="colorPrimary">#3F51B5</color>
<color name="colorPrimaryDark">#303F9F</color>
<color name="colorAccent">#FF4081</color>
<color name="gray">#444440</color>
</resources>
|
File: res/values/styles.xml
<resources>
<!-- Base application theme. -->
<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
<!-- Customize your theme here. -->
<item name="colorPrimary">@color/colorPrimary</item>
<item name="colorPrimaryDark">@color/colorPrimaryDark</item>
<item name="colorAccent">@color/colorAccent</item>
</style>
<style name="AppTheme.NoActionBar">
<item name="windowActionBar">false</item>
<item name="windowNoTitle">true</item>
</style>
<style name="AppTheme.AppBarOverlay" parent="ThemeOverlay.AppCompat.Dark.ActionBar"/>
<style name="AppTheme.PopupOverlay" parent="ThemeOverlay.AppCompat.Light" />
<style name="SplashTheme" parent="Theme.AppCompat.NoActionBar">
<item name="android:windowBackground">@drawable/background_splash</item>
</style>
</resources>
|
2.3) Edit Controller
File: SplashActivity.java
package com.notarazi.myneighbors;
import android.content.Intent;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
public class SplashActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_splash);
Intent intent = new Intent(this, MainActivity.class);
startActivity(intent);
finish();
}
}
|
2.4) Edit AndroidManifest
... so that the launcher starts with SplashActivity and is using the custom theme.
|
File: AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.notarazi.myneighbors">
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme">
<activity
android:name=".MainActivity"
android:label="@string/app_name"
android:theme="@style/AppTheme.NoActionBar">
</activity>
<activity android:name=".SplashActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>
|
OUTCOME.

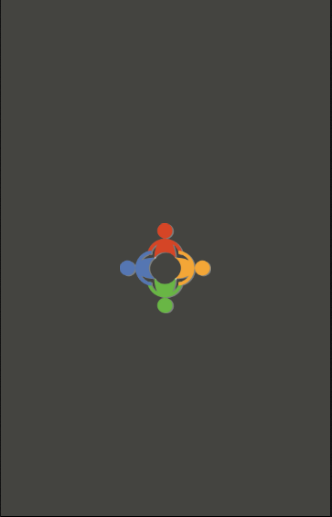

Splash Screen
|

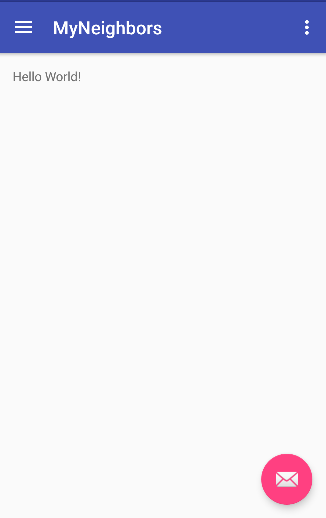

Followed by Main Screen
| |
DOWNLOAD: MyNeighbors101a.zip
REFERENCE:
In addition to this, we can set a delay timer.
|
File: SplashActivity.java
package com.notarazi.myneighbors;
import android.content.Intent;
import android.os.Handler;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.Toast;
public class SplashActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_splash);
setDelayAndFinish();
}
private void setDelayAndFinish() {
new Handler().postDelayed(new Runnable() {
// Using handler with postDelayed called runnable run method
@Override
public void run() {
//display in short period of time
Intent intent = new Intent(SplashActivity.this, MainActivity.class);
startActivity(intent);
finish();
}
}, 3 * 1000); // wait for 3 seconds
}
}
|
DOWNLOAD: MyNeighBors101b.zip
