106 MySuperHero User Settings
Most of the apps have a page for users to keep some personal information such as profile name, email and photo.
We are going to create a Settings page and link this page to the Apps Menu
When the user presses the Menu button on Android Device, a pop up menu will appear and display the item Settings. Clicking the item will bring the user to the Settings page.
|
0) Starting Up
Continue from the previous tutorial or download the startup files here.
1) Create a new activity
Use Blank Activity template to create a new activity called SettingsActivity. (If you have forgotten the steps, refer http://android-steps.blogspot.my/2015/03/101-mysuperhero-android-splashscreen.html )
2) Link the options menu action to the page
File: SuperHeroesActivity.java
package com.example.mysuperhero;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.content.SharedPreferences;
import android.text.TextUtils;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class SuperHeroesActivity extends Activity {
Button btnAddSuperHero;
ListView lvwSuperHeroes;
List < String > lstSuperHeroes = new ArrayList < String > (); //init lstSuperHeroes
ArrayAdapter adpSuperHeroes;
static final int ADD_ITEM = 1; // The request code to add item
static final int EDIT_ITEM = 2; // The request code to edit item
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_super_heroes);
setLvwSuperHeroes();
setBtnAddSuperHero();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_super_heroes, menu);
return true;
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
// Handle item selection
switch (item.getItemId()) {
case R.id.menu_settings:
startActivity (new Intent(SuperHeroesActivity.this, SettingsActivity.class));
default:
return super.onOptionsItemSelected(item);
}
}
private void setLvwSuperHeroes() {
//bind object
lvwSuperHeroes = (ListView) findViewById(R.id.lvw_superheroes);
//load data from SharedPreferences to lstSuperHeroes if exists
loadData();
//define adpSuperHeroes having data source from lstSuperHeroes
adpSuperHeroes = new ArrayAdapter < String > (this, android.R.layout.simple_list_item_1, lstSuperHeroes);
//Plug adpSuperHeroes to lvwSuperHeroes
lvwSuperHeroes.setAdapter(adpSuperHeroes);
//set onclick listener for listview
lvwSuperHeroes.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView < ? > parent, View view, int position, long id) {
Intent intent = new Intent(SuperHeroesActivity.this, SuperHeroActivity.class);
intent.putExtra("POSITION", position);
intent.putExtra("NAME", lvwSuperHeroes.getItemAtPosition(position).toString());
startActivityForResult(intent, EDIT_ITEM);
}
});
//set onItemLongClickListener
lvwSuperHeroes.setOnItemLongClickListener(new AdapterView.OnItemLongClickListener() {
public boolean onItemLongClick(AdapterView < ? > arg0, View v,
int index, long arg3) {
deleteSuperHero(index);
//save changes (DELETE_ITEM) to SharedPreferences
saveData();
return true;
}
});
}
private void setBtnAddSuperHero() {
btnAddSuperHero = (Button) findViewById(R.id.btn_add_superhero);
btnAddSuperHero.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View view) {
Intent intent = new Intent(SuperHeroesActivity.this, SuperHeroActivity.class);
startActivityForResult(intent, ADD_ITEM);
}
});
}
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
String strNewName = "";
int intPosition = -1;
if (resultCode == RESULT_OK) {
if (requestCode == ADD_ITEM) {
try {
strNewName = data.getStringExtra("NAME");
} catch (Exception e) {}
addSuperHero(strNewName);
}
if (requestCode == EDIT_ITEM) {
try {
intPosition = data.getIntExtra("POSITION", -1);
strNewName = data.getStringExtra("NAME");
} catch (Exception e) {}
editSuperHero(intPosition, strNewName);
}
//save changes (ADD_ITEM or EDIT_ITEM) to SharedPreferences
saveData();
} else if (resultCode == RESULT_CANCELED) {
//Toast.makeText(getApplicationContext(), "No Changes", //Toast.LENGTH_SHORT).show();
}
}
private void editSuperHero(int position, String text) {
//check that we have a valid position value
if (position < 0) {
return;
}
//replace item in lstSuperHeroes
lstSuperHeroes.set(position, text);
//notify apps that adapter has changed
adpSuperHeroes.notifyDataSetChanged();
//scroll to the bottom
lvwSuperHeroes.smoothScrollToPosition(adpSuperHeroes.getCount() - 1);
}
private void addSuperHero(String strNewName) {
//add new item to lstSuperHeroes
lstSuperHeroes.add(strNewName);
//notify apps that adapter has changed
adpSuperHeroes.notifyDataSetChanged();
//scroll to the bottom
lvwSuperHeroes.smoothScrollToPosition(adpSuperHeroes.getCount() - 1);
}
private void deleteSuperHero(int position) {
//delete item in lstSuperHeroes
lstSuperHeroes.remove(position);
//notify apps that adapter has changed
adpSuperHeroes.notifyDataSetChanged();
}
private void loadData() {
//get data from SharedPreferences Resource identified by appsdata
SharedPreferences spAppsData = getSharedPreferences("appsdata", MODE_PRIVATE);
//get comma-separated values from data item identified by superheroes (key)
String csvSuperHeroes = spAppsData.getString("superheroes", "");
if (!csvSuperHeroes.equals("")) {
//convert comma-separated value to string array using split method
//create new list array having values from string array
lstSuperHeroes = new ArrayList < String > (Arrays.asList(csvSuperHeroes.split(",")));
}
}
private void saveData() {
//set data SharedPreferences Resource identified by appsdata
SharedPreferences spAppsData = getSharedPreferences("appsdata", MODE_PRIVATE);
//set edit mode
SharedPreferences.Editor e = spAppsData.edit();
//prepare comma-separated values from lstSuperHeroes
String csvSuperHeroes = TextUtils.join(",", lstSuperHeroes);
//put values into data item identified by superheroes (key)
e.putString("superheroes", csvSuperHeroes);
//make permanent
e.commit();
}
}
|
OUTCOME.
3) Create Layout
Save the image as res/drawable/user
File: res/layout/activity_settings.xml
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".SettingsActivity" >
<ImageView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:src="@drawable/user"
android:layout_marginTop="20dp"
android:layout_gravity="center_horizontal"
/>
<EditText
android:id="@+id/etx_name"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"
android:hint="Name" />
<EditText
android:id="@+id/etx_email"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"
android:hint="Email" />
<Button
android:id="@+id/btn_register"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"
android:text="Register"
android:background="#e6e6e6" />
<Button
android:id="@+id/btn_backup"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"
android:text="Backup To Cloud"
android:background="#00bfff" />
<Button
android:id="@+id/btn_restore"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"
android:text="Restore From Cloud"
android:background="#ff00ff" />
</LinearLayout>
|

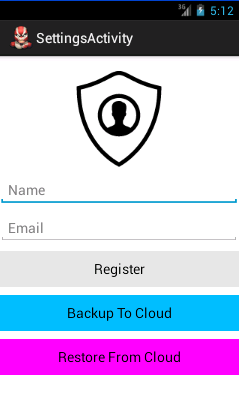

OUTCOME.
4) Save to SharedPreferences
File: SettingsActivity.java
package com.example.mysuperhero;
import java.util.ArrayList;
import java.util.Arrays;
import android.os.Bundle;
import android.app.Activity;
import android.content.SharedPreferences;
import android.text.TextUtils;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class SettingsActivity extends Activity {
EditText etxName;
EditText etxEmail;
Button btnRegister, btnBackup, btnRestore;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_settings);
setForm();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_settings, menu);
return true;
}
private void setForm() {
etxName = (EditText) findViewById(R.id.etx_name);
etxEmail = (EditText) findViewById(R.id.etx_email);
loadData();
btnRegister = (Button) findViewById(R.id.btn_register);
btnRegister.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View view) {
if (isValidFormData()) {
saveData();
registerData();
}
}
private boolean isValidFormData() {
boolean isName = false, isEmail = false;
String emailPattern = "[a-zA-Z0-9._-]+@[a-z]+\\.+[a-z]+";
String strTestValue = "";
//get field values
strTestValue = etxName.getText().toString();
//check field values validity
if (isEmptyString(strTestValue)) {
etxName.setError("Name must not be empty");
Toast.makeText(getApplicationContext(), "Name error", Toast.LENGTH_SHORT).show();
} else {
isName = true;
}
//get field values
strTestValue = etxEmail.getText().toString();
//check field values validity
if (isEmptyString(strTestValue)) {
etxEmail.setError("Email must not be empty");
Toast.makeText(getApplicationContext(), "Email error", Toast.LENGTH_SHORT).show();
} else {
if (strTestValue.matches(emailPattern)) {
isEmail = true;
} else {
etxEmail.setError("Enter valid Email format");
Toast.makeText(getApplicationContext(), "Email error", Toast.LENGTH_SHORT).show();
}
}
return (isName && isEmail);
}
// validating empty string
public boolean isEmptyString(String text) {
return (text == null || text.trim().equals("null") || text.trim()
.length() <= 0);
}
});
}
private void registerData() {
// TODO Auto-generated method stub
Toast.makeText(getApplicationContext(), "Registering...", Toast.LENGTH_SHORT).show();
}
private void saveData() {
//set data SharedPreferences Resource identified by userdata
SharedPreferences spUserData = getSharedPreferences("userdata", MODE_PRIVATE);
//set edit mode
SharedPreferences.Editor e = spUserData.edit();
//put values into data items
e.putString("name", etxName.getText().toString());
e.putString("email", etxEmail.getText().toString());
//make permanent
e.commit();
}
private void loadData() {
//get data from SharedPreferences Resource identified by userdata
SharedPreferences spUserData = getSharedPreferences("userdata", MODE_PRIVATE);
//get values from data items
etxName.setText(spUserData.getString("name", ""));
etxEmail.setText(spUserData.getString("email", ""));
}
}
|
Start.
Go to Settings
|
Enter details
|
Click Register
|
press Back Button to return to front page
|
Go to Settings again and you should see your last saved data
|
At this point, the apps only stores the data locally ie in Shared Preferences.
In the next tutorial, we shall make this apps registers for cloud service.
|
DOWNLOAD
.
No comments:
Post a Comment
