104 MySuperHero Android Form Processing
We are going to provide a form for users to enter their super hero names.
The form will be provided in a separate activity, SuperHeroActivity (without s).
We will use StartActivityForResult to call the SuperHeroActivity. When the user finishes entering the data and submit them, SuperHeroActivity will return back to SuperHeroesActivity together with data for ListView to update.
|
0) Starting Up

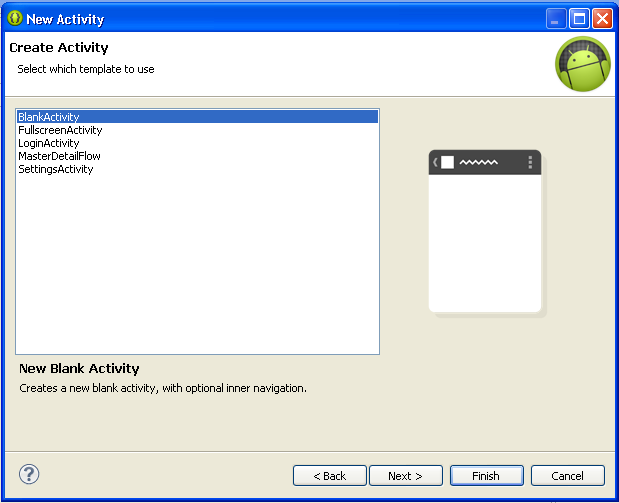

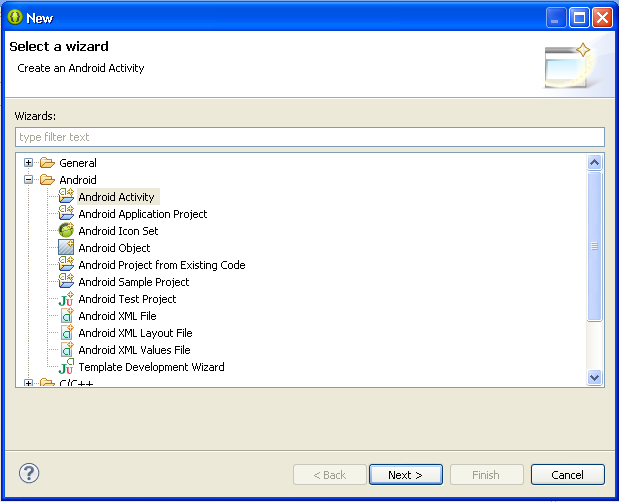

1) Add a new activity

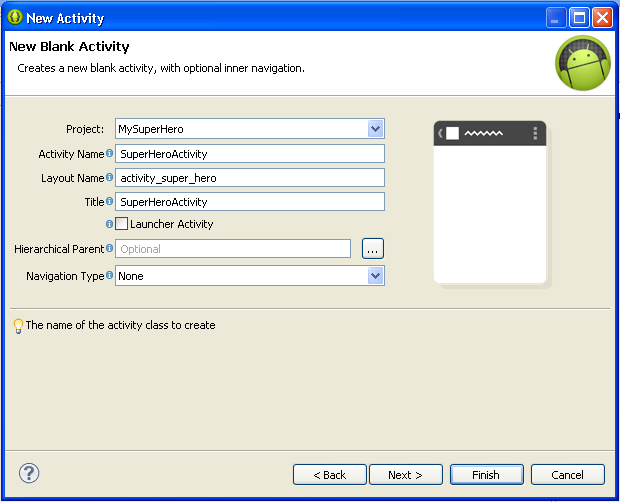

Type a name SuperHeroActivity. (without s)
2) startActivityForResult and onActivityResult
There will be a lot of code changes.
Refer code outlines below.
When the button is clicked, onClickListener will call startActivityForResult forSuperHeroActivity with no Intent Extra. RequestCode is 1 (ADD_ITEM).
When the list is clicked, onItemClickListener will call startActivityForResult forSuperHeroActivity with Intent Extra. RequestCode is 2 (EDIT_ITEM).
When SuperHeroActivity receives BackPressed event, the apps goes back to SuperHeroesActivity. The OnActivityResult method will evaluate the ResultCode andRequestCode .
Since we use setResult to return RESULT_CANCELED, you will get No Parameter Changes message.

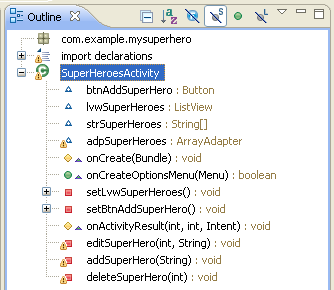

File: SuperHeroesActivity.java
|
File: SuperHeroesActivity.java
package com.example.mysuperhero;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class SuperHeroesActivity extends Activity {
Button btnAddSuperHero;
ListView lvwSuperHeroes;
String[] strSuperHeroes;
ArrayAdapter adpSuperHeroes;
static final int ADD_ITEM = 1; // The request code to add item
static final int EDIT_ITEM = 2; // The request code to edit item
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_super_heroes);
setLvwSuperHeroes();
setBtnAddSuperHero();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_super_heroes, menu);
return true;
}
private void setLvwSuperHeroes() {
//bind object
lvwSuperHeroes = (ListView) findViewById(R.id.lvw_superheroes);
//Add new values to array
strSuperHeroes = new String[] {
"Superman",
"Spiderman",
"Batman",
"Ironman",
"Ultraman",
"Pacman",
"Roboman"
};
//Create ArrayList from strSuperHeroes
List < String > values = new ArrayList < String > (Arrays.asList(strSuperHeroes));
//Create Adapter to load ArrayList
adpSuperHeroes = new ArrayAdapter < String > (this, android.R.layout.simple_list_item_1, values);
//Plug adpSuperHeroes to lvwSUperHeroes
lvwSuperHeroes.setAdapter(adpSuperHeroes);
//set onclick listener for listview
lvwSuperHeroes.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView < ? > parent, View view, int position, long id) {
Intent intent = new Intent(SuperHeroesActivity.this, SuperHeroActivity.class);
intent.putExtra("POSITION", position);
intent.putExtra("NAME", lvwSuperHeroes.getItemAtPosition(position).toString());
startActivityForResult(intent, EDIT_ITEM);
}
});
//set onItemLongClickListener
lvwSuperHeroes.setOnItemLongClickListener(new AdapterView.OnItemLongClickListener() {
public boolean onItemLongClick(AdapterView < ? > arg0, View v,
int index, long arg3) {
deleteSuperHero(index);
return true;
}
});
}
private void setBtnAddSuperHero() {
btnAddSuperHero = (Button) findViewById(R.id.btn_add_superhero);
btnAddSuperHero.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View view) {
Intent intent = new Intent(SuperHeroesActivity.this, SuperHeroActivity.class);
startActivityForResult(intent, ADD_ITEM);
}
});
}
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data){
if (resultCode==RESULT_OK){
if(requestCode==ADD_ITEM){
addSuperHero();
}
if(requestCode==EDIT_ITEM){
editSuperHero(0,"test"); //dummy values only
}
}else if (resultCode==RESULT_CANCELED){
Toast.makeText(getApplicationContext(), "No Changes",Toast.LENGTH_SHORT).show();
}
}
private void editSuperHero(int position, String text) {
//recreate new superheroes string array
String[] strNewSuperHeroes = new String[adpSuperHeroes.getCount()];
for (int i = 0; i < adpSuperHeroes.getCount(); i++) {
if (i != position) {
strNewSuperHeroes[i] = (String) adpSuperHeroes.getItem(i);
} else {
strNewSuperHeroes[i] = (String) adpSuperHeroes.getItem(i);
strNewSuperHeroes[i] += " Edited";
}
}
//clear adapter
adpSuperHeroes.clear();
//reassign new superheroes string array to adapter
adpSuperHeroes.addAll(strNewSuperHeroes);
//notify apps that adapter has changed
adpSuperHeroes.notifyDataSetChanged();
//scroll to the bottom
lvwSuperHeroes.smoothScrollToPosition(adpSuperHeroes.getCount() - 1);
}
private void addSuperHero() {
adpSuperHeroes.add("New Hero");
adpSuperHeroes.notifyDataSetChanged();
//scroll to the bottom
lvwSuperHeroes.smoothScrollToPosition(adpSuperHeroes.getCount() - 1);
}
private void deleteSuperHero(int position) {
adpSuperHeroes.remove(adpSuperHeroes.getItem(position));
adpSuperHeroes.notifyDataSetChanged();
}
}
|

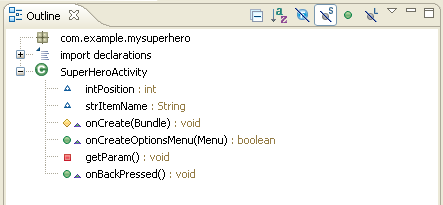

File: SuperHeroActivity.java
package com.example.mysuperhero;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.widget.Toast;
public class SuperHeroActivity extends Activity {
int intPosition=-1; //init intPosition to -1 ie no position value
String strItemName=""; //init strItemName to ""
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_super_hero);
getParam();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_super_hero, menu);
return true;
}
private void getParam(){
final Bundle bundle = getIntent().getExtras();
if(bundle != null) {
intPosition = bundle.getInt("POSITION");
strItemName = bundle.getString("NAME");
Toast.makeText(getApplicationContext(),
"POSITION: "+intPosition
+"\nNAME: " + strItemName,
Toast.LENGTH_SHORT).show();
}else{
Toast.makeText(getApplicationContext(),
"No Parameter",
Toast.LENGTH_SHORT).show();
}
}
@Override
public void onBackPressed() {
super.onBackPressed();
setResult(Activity.RESULT_CANCELED); //no changes
finish();
}
}
|

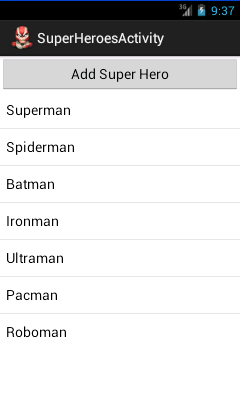

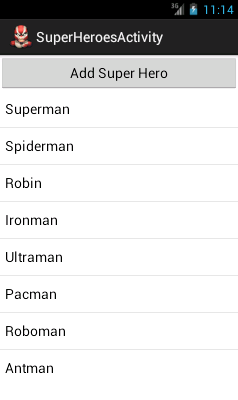

Start.
Click Add Super Hero button.
|
SuperHeroActivity is started.
No Parameter is toasted.
|
Press Back Button.
SuperHeroesActivity is started.

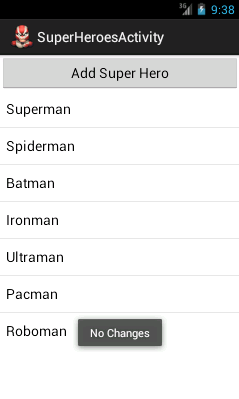

No Changes is toasted.
|
Start.
Click Ironman.
|
SuperHeroActivity is started.

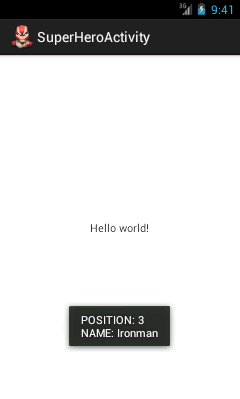

Ironman item POSITION and NAME is toasted.
|
Press Back Button.
SuperHeroesActivity is started.
No Changes is toasted.
|

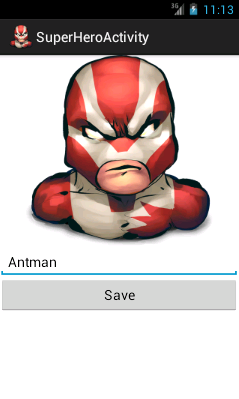

3) Form Layout
File: res/layout/activity_super_hero.xml
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".SuperHeroActivity" >
<ImageView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:src="@drawable/superhero"
android:layout_gravity="center_horizontal"
/>
<EditText
android:id="@+id/etx_name"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:hint="Name" />
<Button
android:id="@+id/btn_save"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Save" />
</LinearLayout>
|
4) Form Processing

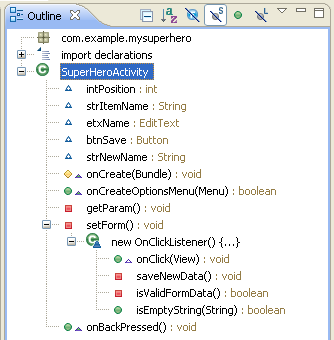

File: SuperHeroActivity.java
package com.example.mysuperhero;
import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class SuperHeroActivity extends Activity {
int intPosition = -1; //init intPosition to -1 ie no position value
String strItemName = ""; //init strItemName to ""
EditText etxName;
Button btnSave;
String strNewName = "";
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_super_hero);
setForm();
getParam();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_super_hero, menu);
return true;
}
private void getParam() {
final Bundle bundle = getIntent().getExtras();
if (bundle != null) {
intPosition = bundle.getInt("POSITION");
strItemName = bundle.getString("NAME");
etxName.setText(strItemName);
} else {
//Toast.makeText(getApplicationContext(),
//"No Parameter",
//Toast.LENGTH_SHORT).show();
}
}
private void setForm() {
etxName = (EditText) findViewById(R.id.etx_name);
btnSave = (Button) findViewById(R.id.btn_save);
btnSave.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View view) {
if (isValidFormData()) {
saveNewData();
}
}
private void saveNewData() {
Intent intent = new Intent();
intent.putExtra("POSITION", intPosition);
intent.putExtra("NAME", strNewName);
setResult(Activity.RESULT_OK, intent); //2=Edit Buddy
finish();
}
private boolean isValidFormData() {
boolean isName = false;
//get field values
strNewName = etxName.getText().toString();
//check field values validity
if (isEmptyString(strNewName)) {

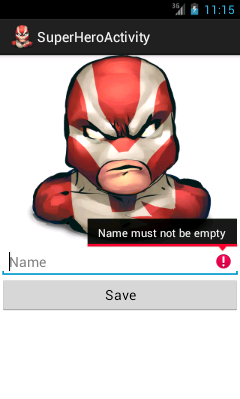

etxName.setError("Name must not be empty");
} else {
isName = true;
}
return (isName);
}
// validating empty string
public boolean isEmptyString(String text) {
return (text == null || text.trim().equals("null") || text.trim()
.length() <= 0);
}
});
}
@Override
public void onBackPressed() {
super.onBackPressed();
setResult(Activity.RESULT_CANCELED);
finish();
}
}
|
5) OnActivityResult
File: SuperHeroesActivity.java
package com.example.mysuperhero;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class SuperHeroesActivity extends Activity {
Button btnAddSuperHero;
ListView lvwSuperHeroes;
String[] strSuperHeroes;
ArrayAdapter adpSuperHeroes;
static final int ADD_ITEM = 1; // The request code to add item
static final int EDIT_ITEM = 2; // The request code to edit item
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_super_heroes);
setLvwSuperHeroes();
setBtnAddSuperHero();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_super_heroes, menu);
return true;
}
private void setLvwSuperHeroes() {
//bind object
lvwSuperHeroes = (ListView) findViewById(R.id.lvw_superheroes);
//Add new values to array
strSuperHeroes = new String[] {
"Superman",
"Spiderman",
"Batman",
"Ironman",
"Ultraman",
"Pacman",
"Roboman"
};
//Create ArrayList from strSuperHeroes
List < String > values = new ArrayList < String > (Arrays.asList(strSuperHeroes));
//Create Adapter to load ArrayList
adpSuperHeroes = new ArrayAdapter < String > (this, android.R.layout.simple_list_item_1, values);
//Plug adpSuperHeroes to lvwSUperHeroes
lvwSuperHeroes.setAdapter(adpSuperHeroes);
//set onclick listener for listview
lvwSuperHeroes.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView < ? > parent, View view, int position, long id) {
Intent intent = new Intent(SuperHeroesActivity.this, SuperHeroActivity.class);
intent.putExtra("POSITION", position);
intent.putExtra("NAME", lvwSuperHeroes.getItemAtPosition(position).toString());
startActivityForResult(intent, EDIT_ITEM);
}
});
//set onItemLongClickListener
lvwSuperHeroes.setOnItemLongClickListener(new AdapterView.OnItemLongClickListener() {
public boolean onItemLongClick(AdapterView < ? > arg0, View v,
int index, long arg3) {
deleteSuperHero(index);
return true;
}
});
}
private void setBtnAddSuperHero() {
btnAddSuperHero = (Button) findViewById(R.id.btn_add_superhero);
btnAddSuperHero.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View view) {
Intent intent = new Intent(SuperHeroesActivity.this, SuperHeroActivity.class);
startActivityForResult(intent, ADD_ITEM);
}
});
}
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
String strNewName = "";
int intPosition = -1;
if (resultCode == RESULT_OK) {
if (requestCode == ADD_ITEM) {
try {
strNewName = data.getStringExtra("NAME");
} catch (Exception e) {}
addSuperHero(strNewName);
}
if (requestCode == EDIT_ITEM) {
try {
intPosition = data.getIntExtra("POSITION", -1);
strNewName = data.getStringExtra("NAME");
} catch (Exception e) {}
editSuperHero(intPosition, strNewName);
}
} else if (resultCode == RESULT_CANCELED) {
Toast.makeText(getApplicationContext(), "No Changes", Toast.LENGTH_SHORT).show();
}
}
private void editSuperHero(int position, String text) {
//recreate new superheroes string array
if (position<0){return;} //check that we have a valid position value
String[] strNewSuperHeroes = new String[adpSuperHeroes.getCount()];
for (int i = 0; i < adpSuperHeroes.getCount(); i++) {
if (i != position) {
strNewSuperHeroes[i] = (String) adpSuperHeroes.getItem(i);
} else {
strNewSuperHeroes[i] = text;
}
}
//clear adapter
adpSuperHeroes.clear();
//reassign new superheroes string array to adapter
adpSuperHeroes.addAll(strNewSuperHeroes);
//notify apps that adapter has changed
adpSuperHeroes.notifyDataSetChanged();
//scroll to the bottom
lvwSuperHeroes.smoothScrollToPosition(adpSuperHeroes.getCount() - 1);
}
private void addSuperHero(String strNewName) {
adpSuperHeroes.add(strNewName);
adpSuperHeroes.notifyDataSetChanged();
//scroll to the bottom
lvwSuperHeroes.smoothScrollToPosition(adpSuperHeroes.getCount() - 1);
}
private void deleteSuperHero(int position) {
adpSuperHeroes.remove(adpSuperHeroes.getItem(position));
adpSuperHeroes.notifyDataSetChanged();
}
}
|
OUTCOME.
Start.
Click Add Super Hero.
|
Enter Antman.
Click Save.
|
Antman is added to the list.
|
Start.
Click Add Super Hero.
|
Click Save.
You get error.
| |
Start.
Click Batman.
|
Replace Batman with Robin.
Click Save.
|
Robin replaces Batman in the list.
|
Click either Add Super Hero or any name.
|
Press Back Button
|
DOWNLOAD
.
No comments:
Post a Comment
