MyBuddies02 ListView SetAdapter
Development Environment:
Android Studio 1.5.1
Build #AI-141.2456560, built on December 1,2015
JRE: 1.7.0_25-b17 amd64
|

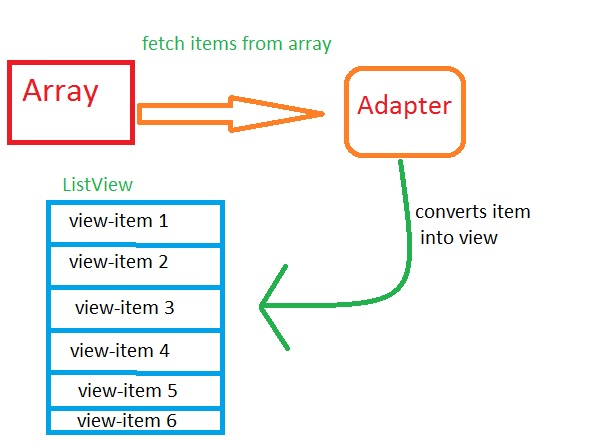

This project replaces the XML setting for List Entries and uses the ArrayAdapter to load Entries to List.
The adapter uses String Array data type for its sources.
|
0) Starting Up
1) Edit Layout (activity_main.xml)
Delete the android:entries statement .
File: activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.notarazi.mybuddies01.MainActivity">
<Button
android:id="@+id/btn_add_buddy"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Add Buddy"/>
<ListView
android:id="@+id/lvw_buddies"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:entries="@array/buddies_array"
/>
</LinearLayout>
|
2) Edit Controller (MainActivity.java)
Add Adapter.
File: MainActivity.java
package com.notarazi.mybuddies01;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class MainActivity extends AppCompatActivity {
ListView lvwBuddies;
Button btnAddBuddy;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
setLvwBuddies();
setBtnAddBuddy();
}
private void setLvwBuddies() {
lvwBuddies = (ListView) findViewById(R.id.lvw_buddies);
// get String Array from Array Resources
String[] strBuddies = getResources().getStringArray(R.array.buddies_array);
//Create Adapter containing strBuddies array
final ArrayAdapter adpBuddies = new ArrayAdapter(this, android.R.layout.simple_list_item_1, strBuddies);
//Plug adpBuddies to lvwBuddies
lvwBuddies.setAdapter(adpBuddies);
lvwBuddies.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView<?> parent, View view, int position,long id) {
editBuddy(position, ((TextView) view).getText().toString());
}
});
}
private void setBtnAddBuddy() {
btnAddBuddy=(Button) findViewById(R.id.btn_add_buddy);
btnAddBuddy.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
addBuddy();
}
});
}
private void addBuddy() {
Toast.makeText(getApplicationContext(),"Add Buddy",
Toast.LENGTH_SHORT).show();
}
private void editBuddy(int position, String text) {
Toast.makeText(getApplicationContext(),"Edit Buddy.\nPosition:"+position+"\nText:"+text+"\n",
Toast.LENGTH_SHORT).show();
}
}
|
3) Alternative Approach
Delete String Resources and Write String Values in Controller
package com.notarazi.mybuddies01;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class MainActivity extends AppCompatActivity {
ListView lvwBuddies;
Button btnAddBuddy;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
setLvwBuddies();
setBtnAddBuddy();
}
private void setLvwBuddies() {
lvwBuddies = (ListView) findViewById(R.id.lvw_buddies);
// create String Array
String[] strBuddies ={"Superman","Batman","Spiderman","Ultraman","Ironman"};
//Create Adapter containing strBuddies array
final ArrayAdapter adpBuddies = new ArrayAdapter(this, android.R.layout.simple_list_item_1, strBuddies);
//Plug adpBuddies to lvwBuddies
lvwBuddies.setAdapter(adpBuddies);
lvwBuddies.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView<?> parent, View view, int position,long id) {
editBuddy(position, ((TextView) view).getText().toString());
}
});
}
private void setBtnAddBuddy() {
btnAddBuddy=(Button) findViewById(R.id.btn_add_buddy);
btnAddBuddy.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
addBuddy();
}
});
}
private void addBuddy() {
Toast.makeText(getApplicationContext(),"Add Buddy",
Toast.LENGTH_SHORT).show();
}
private void editBuddy(int position, String text) {
Toast.makeText(getApplicationContext(),"Edit Buddy.\nPosition:"+position+"\nText:"+text+"\n",
Toast.LENGTH_SHORT).show();
}
}
|
DOWNLOAD
REFERENCES
.
