Volley Network Image View
Using Android Studio 1.4
1) Create New Project
Application Name: MyVolleyLoadImage1
Select API 14:Android 4.0 (IceCreamSandwich)
Follow the wizard to create New Blank Activity.
2) Import Volley Library Into Project
2.1) Download Volley Project
2.2) Import using Android Studio
2.3) Add Dependencies
Build.Gradle(Module:App)
apply plugin: 'com.android.application'
android {
compileSdkVersion 23
buildToolsVersion "23.0.1"
defaultConfig {
applicationId "com.notarazi.myvolleyloadimage1"
minSdkVersion 14
targetSdkVersion 23
versionCode 1
versionName "1.0"
}
buildTypes {
release {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
}
}
}
dependencies {
compile fileTree(dir: 'libs', include: ['*.jar'])
testCompile 'junit:junit:4.12'
compile 'com.android.support:design:23.1.0'
compile project(':volley')
}
|
Sync Project with Gradle Files
2.4) Add Permission
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.notarazi.myvolleyloadimage1" >
<uses-permission android:name="android.permission.INTERNET"/>
<application
android:name="com.notarazi.myvolleyloadimage1.MyApplication"
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme" >
<activity
android:name=".MainActivity"
android:label="@string/app_name"
android:theme="@style/AppTheme.NoActionBar" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>
|
If you missed this step, your debug message will tell you about this.
2.5) Create MyApplication.java
package com.notarazi.myvolleyloadimage1;
import android.app.Application;
import com.android.volley.Request;
import com.android.volley.RequestQueue;
import com.android.volley.toolbox.ImageLoader;
import com.android.volley.toolbox.Volley;
public class MyApplication extends Application {
private RequestQueue mRequestQueue;
private static MyApplication mInstance;
private ImageLoader mImageLoader;
@Override
public void onCreate() {
super.onCreate();
mInstance = this;
}
public static synchronized MyApplication getInstance() {
return mInstance;
}
public RequestQueue getReqQueue() {
if (mRequestQueue == null) {
mRequestQueue = Volley.newRequestQueue(getApplicationContext());
}
return mRequestQueue;
}
public <T> void addToReqQueue(Request<T> req, String tag) {
getReqQueue().add(req);
}
public <T> void addToReqQueue(Request<T> req) {
getReqQueue().add(req);
}
public void cancelPendingReq(Object tag) {
if (mRequestQueue != null) {
mRequestQueue.cancelAll(tag);
}
}
public ImageLoader getImageLoader() {
getReqQueue();
if (mImageLoader == null) {
mImageLoader = new ImageLoader(this.mRequestQueue,
new BitmapLruCache());
}
return this.mImageLoader;
}
}
|
3) Edit Layout
3.1) res/layout/content_main.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:paddingBottom="@dimen/activity_vertical_margin"
app:layout_behavior="@string/appbar_scrolling_view_behavior"
tools:showIn="@layout/activity_main"
tools:context=".MainActivity">
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
tools:context="com.notarazi.myvolleyloadimage1.MainActivity" >
<com.android.volley.toolbox.NetworkImageView
android:id="@+id/thumbnail"
android:layout_width="180dp"
android:layout_height="210dp"
android:layout_gravity="center"
android:layout_marginTop="25dp"
android:src="@drawable/loading" />
</LinearLayout>
</RelativeLayout>
|
4) Add BitMap Cache
4.1) BitmapLruCache.java
package com.notarazi.myvolleyloadimage1;
import android.graphics.Bitmap;
import android.support.v4.util.LruCache;
import com.android.volley.toolbox.ImageLoader.ImageCache;
public class BitmapLruCache extends LruCache<String, Bitmap> implements
ImageCache {
public static int getDefaultLruCacheSize() {
final int maxMemory = (int) (Runtime.getRuntime().maxMemory() / 1024);
final int cacheSize = maxMemory / 8;
return cacheSize;
}
public BitmapLruCache() {
this(getDefaultLruCacheSize());
}
public BitmapLruCache(int sizeInKiloBytes) {
super(sizeInKiloBytes);
}
@Override
protected int sizeOf(String key, Bitmap value) {
return value.getRowBytes() * value.getHeight() / 1024;
}
@Override
public Bitmap getBitmap(String url) {
return get(url);
}
@Override
public void putBitmap(String url, Bitmap bitmap) {
put(url, bitmap);
}
}
|
4.2) Add Loading Image
Download ”Loading...” image and place it under res/drawable.
5) Edit MainActivity.java
package com.notarazi.myvolleyloadimage1;
import android.app.ProgressDialog;
import android.os.Bundle;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import com.android.volley.toolbox.ImageLoader;
import com.android.volley.toolbox.NetworkImageView;
public class MainActivity extends AppCompatActivity {
NetworkImageView imageView;
String url = "https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiAbtCQlb9WvEqwEKSOF1jzX_FUuqQ2VcaEVr23aCwSM6ifLoIQQ2ILiz4QJD_JpL5YPE8hx6moOepvrel0e4A_-85yUAPR3gHmh27Nxve55SHH792MjJY_7LTgxmzmNBQ34E9d3C_z6GUO/s250/studio-logo.png";
ProgressDialog PD;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
setSupportActionBar(toolbar);
getNetworkImage();
FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
fab.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
.setAction("Action", null).show();
}
});
}
private void getNetworkImage() {
imageView = (NetworkImageView) findViewById(R.id.thumbnail);
ImageLoader imageLoader = MyApplication.getInstance().getImageLoader();
imageView.setImageUrl(url, imageLoader);
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.menu_main, menu);
return true;
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
// Handle action bar item clicks here. The action bar will
// automatically handle clicks on the Home/Up button, so long
// as you specify a parent activity in AndroidManifest.xml.
int id = item.getItemId();
//noinspection SimplifiableIfStatement
if (id == R.id.action_settings) {
return true;
}
return super.onOptionsItemSelected(item);
}
}
|

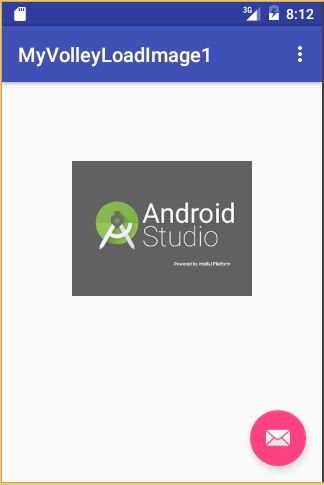

OUTCOME.
DOWNLOAD
REFERENCES
.
