MV102 Android HttpClient Get Method and Remote JSON Data

This tutorial demonstrates the use of Android HTTPClient to get Remote JSON.

Get Request is sent to the website via REST API.

The website returns JSON output.

The Android Apps parses JSON and display the data in the ListView.

There are buttons to refresh data from remote site and to add a new volunteer name.

A better way of handling the JSON data from the server is by converting them into JSON Object in the Http Handler class. That will be demonstrated at http://android-steps.blogspot.my/2015/06/mv2001-android-httpclient-remote-json.html

0) Starting Up

This tutorial continues from the previous http://android-steps.blogspot.my/2015/06/mv101-create-web-api-for-online.html

You need to set up a live website to run the PHP REST Script.

This tutorial uses the free webhosting service www.hostinger.my

Download the PHP REST Script here and upload to your website.

This tutorial connects to the demo site http://notarazi.esy.es/myvolunteers/api/volunteers.

1) Create a new project

Create a new Android Project and give a name MyVolunteers102.

Select Blank Activity.

Accept the default activity name as MainActivity.

You should get the project files/folders as follows.

2) Add Permission To AndroidManifest

This project requires Internet Permission so that the apps could send data to and receive data from the remote website.

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.example.myvolunteers102"

android:versionCode="1"

android:versionName="1.0" >

<uses-permission android:name="android.permission.INTERNET" />

<uses-sdk

android:minSdkVersion="8"

android:targetSdkVersion="17" />

<application

android:allowBackup="true"

android:icon="@drawable/ic_launcher"

android:label="@string/app_name"

android:theme="@style/AppTheme" >

<activity

android:name="com.example.myvolunteers102.MainActivity"

android:label="@string/app_name" >

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

3) Resources

3.1) Drawable

Download the following drawable files and place to your resource folder.

drawable.zip

3.2) Layouts

We need to edit/create three resource files…

res/layout/activity_main.xml contains the main layout consisting of a listview, an action button to refresh and a button a add new volunteer.
(action button item must be added to res/menu/activity_main.xml)
res/layout/activity_main_list_item.xml contains the row layout for the listview.

File: res/layout/activity_main.xml

<RelativeLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context=".MainActivity" >

<ListView

android:id="@+id/lvw_persons"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="@string/hello_world" />

<ImageView

android:id="@+id/imv_person"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_alignParentBottom="true"

android:layout_alignParentRight="true"

android:layout_marginRight="10dp"

android:layout_marginBottom="10dp"

android:src="@drawable/person_add_small" />

</RelativeLayout>

File:res/menu/activity_main.xml

<item

android:id="@+id/menu_refresh"

android:orderInCategory="90"

android:showAsAction="always"

android:icon="@drawable/refresh"

android:title="Refresh"/>

<item

android:id="@+id/menu_settings"

android:orderInCategory="100"

android:showAsAction="never"

android:title="@string/menu_settings"/>

</menu>

File: res/layout/activity_main_list_item.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:orientation="vertical"

android:padding="10dp"

android:paddingLeft="10dp"

android:paddingRight="10dp" >

<TextView

android:id="@+id/name"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:paddingBottom="2dip"

android:paddingTop="6dip"

android:textColor="#43bd00"

android:textSize="16sp"

android:textStyle="bold"

android:text="Name"/>

<TextView

android:id="@+id/email"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:paddingBottom="2dip"

android:textColor="#acacac"

android:text="Email"/>

</LinearLayout>

4) Edit Controller Files

Besides MainActivity.java, there is an additional class (ServiceHandler.java) file that will specifically handle the http request (post and get method).

MainActivity will call ServiceHandler to handle post/get method and it will return the JSON data for parsing.

4.1) Create HTTP Handler

File: ServiceHandler.java

package com.example.myvolunteers102;

import org.apache.http.HttpEntity;

import org.apache.http.HttpResponse;

import org.apache.http.NameValuePair;

import org.apache.http.client.ClientProtocolException;

import org.apache.http.client.entity.UrlEncodedFormEntity;

import org.apache.http.client.methods.HttpGet;

import org.apache.http.client.methods.HttpPost;

import org.apache.http.client.utils.URLEncodedUtils;

import org.apache.http.impl.client.DefaultHttpClient;

import org.apache.http.util.EntityUtils;

import java.io.IOException;

import java.io.UnsupportedEncodingException;

import java.util.List;

public class ServiceHandler {

static String response = null;

public final static int GET = 1;

public final static int POST = 2;

public ServiceHandler() {

}

/**

* Making service call

* @url - url to make request

* @method - http request method

* */

public String makeServiceCall(String url, int method) {

return this.makeServiceCall(url, method, null);

}

/**

* Making service call

* @url - url to make request

* @method - http request method

* @params - http request params

* */

public String makeServiceCall(String url, int method,

List<NameValuePair> params) {

try {

// http client

DefaultHttpClient httpClient = new DefaultHttpClient();

HttpEntity httpEntity = null;

HttpResponse httpResponse = null;

// Checking http request method type

if (method == POST) {

HttpPost httpPost = new HttpPost(url);

// adding post params

if (params != null) {

httpPost.setEntity(new UrlEncodedFormEntity(params));

}

httpResponse = httpClient.execute(httpPost);

} else if (method == GET) {

// appending params to url

if (params != null) {

String paramString = URLEncodedUtils

.format(params, "utf-8");

url += "?" + paramString;

}

HttpGet httpGet = new HttpGet(url);

httpResponse = httpClient.execute(httpGet);

}

httpEntity = httpResponse.getEntity();

response = EntityUtils.toString(httpEntity);

} catch (UnsupportedEncodingException e) {

e.printStackTrace();

} catch (ClientProtocolException e) {

e.printStackTrace();

} catch (IOException e) {

e.printStackTrace();

}

return response;

}

4.2) Edit Main Controller

onCreate method contains a call to set the View Objects (setViewObjects) and a call to execute Get Method Request (getPersons).

Change the url value to your own site.

File: MainActivity.java

package com.example.myvolunteers102;

import java.util.ArrayList;

import java.util.HashMap;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import android.os.AsyncTask;

import android.os.Bundle;

import android.app.Activity;

import android.app.ProgressDialog;

import android.util.Log;

import android.view.Menu;

import android.view.MenuItem;

import android.view.View;

import android.widget.ImageView;

import android.widget.ListView;

import android.widget.SimpleAdapter;

import android.widget.Toast;

public class MainActivity extends Activity {

// JSON Node names

private static final String TAG_PERSONS= "result";

private static final String TAG_ID = "id";

private static final String TAG_NAME = "name";

private static final String TAG_EMAIL = "email";

// persons JSONArray

JSONArray persons = null;

// Hashmap for ListView

ArrayList<HashMap<String, String>> alsPersons = new ArrayList<HashMap<String, String>>();

SimpleAdapter adpPersons;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

setViewObjects();

new GetPersons().execute();

}

private void setViewObjects() {

//bind ListView

ListView mListView = (ListView) findViewById(R.id.lvw_persons);

//set adapter

adpPersons = new SimpleAdapter(MainActivity.this, alsPersons,

R.layout.activity_main_list_item, new String[] { TAG_NAME, TAG_EMAIL,}

, new int[] { R.id.name,R.id.email}

);

//plug adapter to ListView

mListView.setAdapter(adpPersons);

//bind ImageView

ImageView imvPerson =(ImageView) findViewById(R.id.imv_person);

//attach onClickListener to ImageView

imvPerson.setOnClickListener(new View.OnClickListener() {

public void onClick(View v) {

Toast.makeText(getApplicationContext(), "Add Person", Toast.LENGTH_SHORT).show();

}

});

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

// Inflate the menu; this adds items to the action bar if it is present.

getMenuInflater().inflate(R.menu.activity_main, menu);

return true;

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

// Handle item selection

switch (item.getItemId()) {

case R.id.menu_settings:

case R.id.menu_refresh:

new GetPersons().execute();

default:

return super.onOptionsItemSelected(item);

}

/**

* Async task class to get json by making HTTP call

* */

private class GetPersons extends AsyncTask<Void, Void, Void> {

private ProgressDialog pDialog;

// URL to get persons JSON

private String url = "http://notarazi.esy.es/myvolunteers/api/volunteers";

@Override

protected void onPreExecute() {

super.onPreExecute();

// Showing progress dialog

pDialog = new ProgressDialog(MainActivity.this);

pDialog.setMessage("Please wait...");

pDialog.setCancelable(false);

pDialog.show();

}

@Override

protected Void doInBackground(Void... arg0) {

// Creating service handler class instance

ServiceHandler sh = new ServiceHandler();

// Making a request to url and getting response

String jsonStr = sh.makeServiceCall(url, ServiceHandler.GET);

Log.d("Response: ", "> " + jsonStr);

if (jsonStr != null) {

try {

JSONObject jsonObj = new JSONObject(jsonStr);

// Getting JSON Array node

JSONArray arrPersons = jsonObj.getJSONArray(TAG_PERSONS);

//reset personList

alsPersons.clear();

// looping through All Persons

for (int i = 0; i < arrPersons.length(); i++) {

JSONObject jobPerson = arrPersons.getJSONObject(i);

String id = jobPerson.getString(TAG_ID);

String name = jobPerson.getString(TAG_NAME);

String email = jobPerson.getString(TAG_EMAIL);

// tmp hashmap for single person

HashMap<String, String> hmpPerson = new HashMap<String, String>();

// adding each child node to HashMap key => value

hmpPerson.put(TAG_ID, id);

hmpPerson.put(TAG_NAME, name);

hmpPerson.put(TAG_EMAIL, email);

// adding person to person list

alsPersons.add(hmpPerson);

}

} catch (JSONException e) {

e.printStackTrace();

}

} else {

Log.e("ServiceHandler", "Couldn't get any data from the url");

}

return null;

}

@Override

protected void onPostExecute(Void result) {

super.onPostExecute(result);

// Dismiss the progress dialog

if (pDialog.isShowing())

pDialog.dismiss();

/**

* Updating parsed JSON data into ListView

* */

adpPersons.notifyDataSetChanged();

}

OUTCOME.

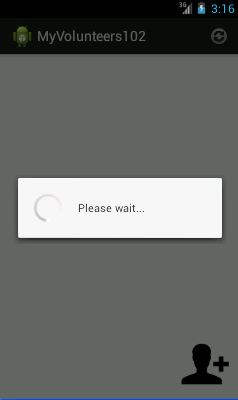

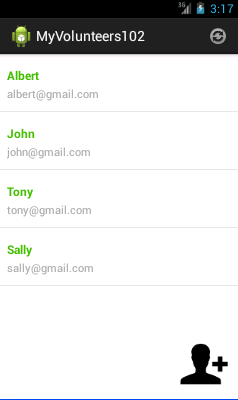

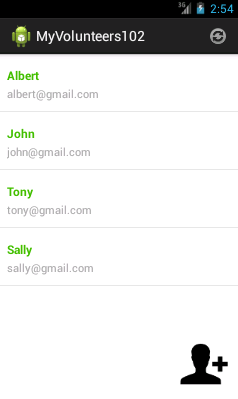

When the apps starts, it will automatically get data from remote site.	If connection is successful, the data will be displayed in the list.

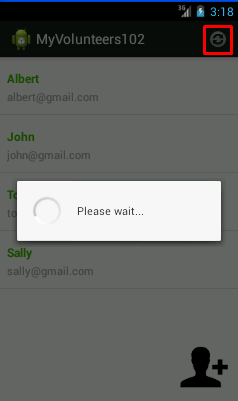

We can refresh the list to get recent data from the remote site.	Later on we will add a new activity for the user to enter a new volunteer.
